Climate Control Unit Disassembly/Assembly [Manual Air Conditioner]




CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER]

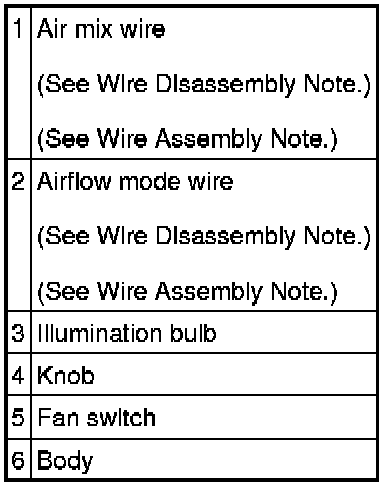

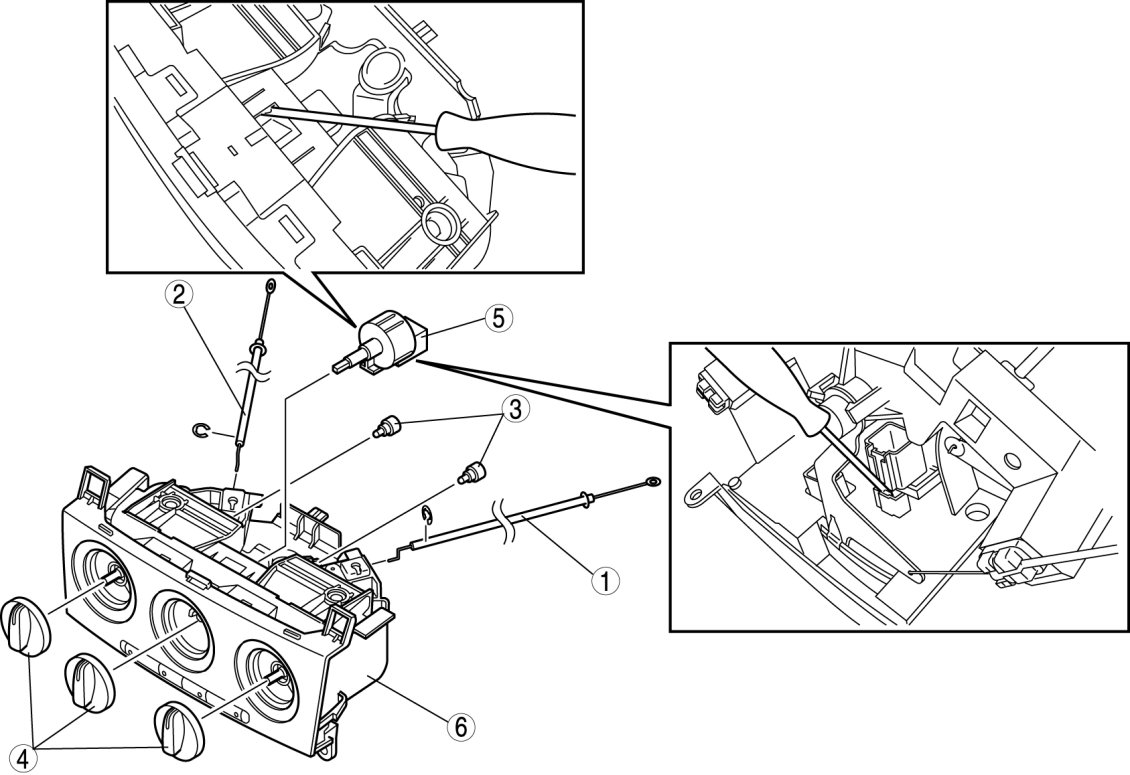

1. Disassemble in the order indicated in the table.










2. Assemble in the reverse order of disassembly.

Wire Disassembly Note

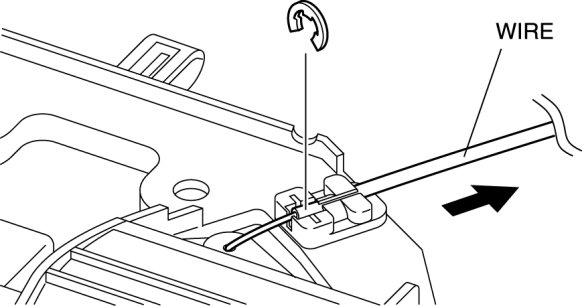

1. Disassemble the wires as shown in the figure.






Wire Assembly Note

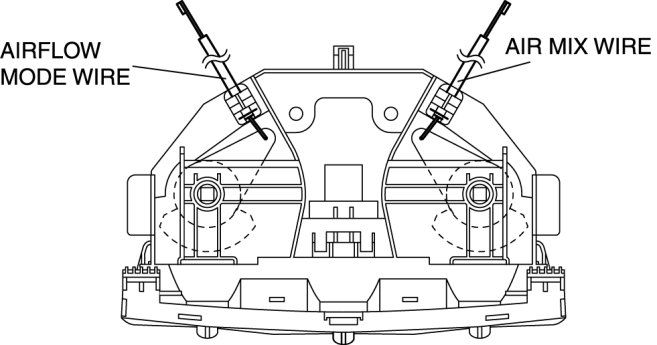

1. Assemble the wires at the positions shown in the figure.

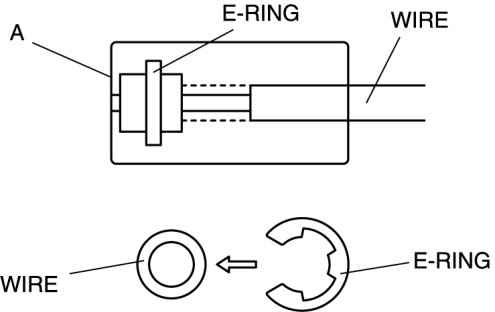

2. Assemble E-ring with the wire pressed against surface A.






- If the E-ring has beer lost, the one at the wire end can be removed and reused.
