Climate Control Unit Removal/Installation [Full-Auto Air Conditioner]




CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the ashtray panel.

3. Remove the console. Removal and Replacement

4. Remove the decoration panel. Decoration Panel Removal/Installation

5. Remove the center panel module. Center Panel Unit Removal/Installation

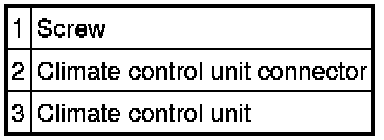

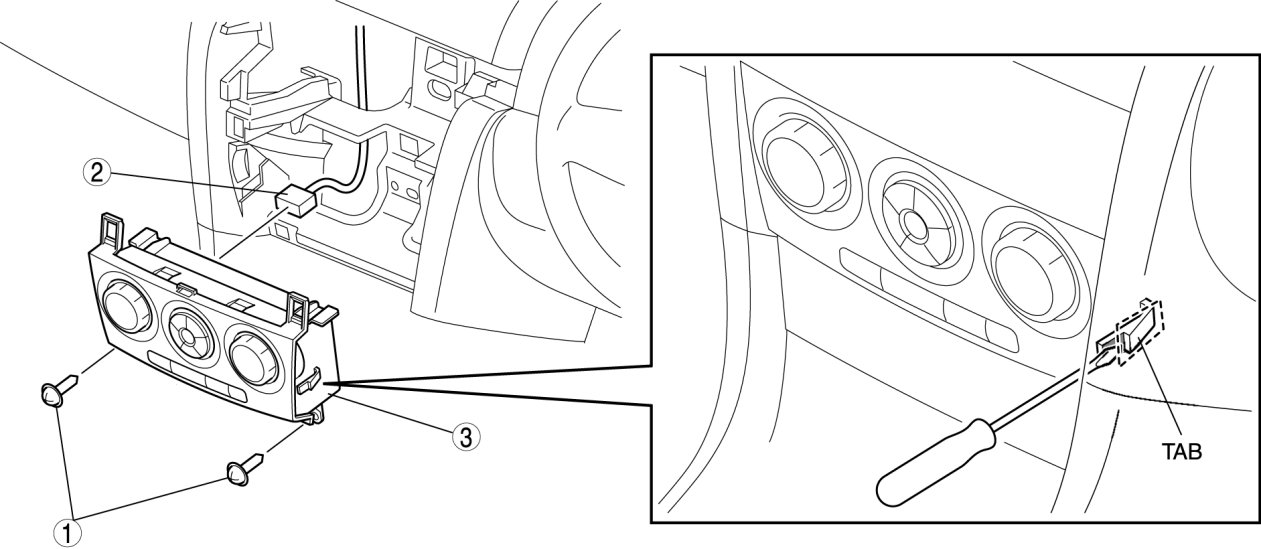

6. Release the left and right tabs and remove as shown in the figure.










7. Install in the reverse order of removal.
