Refrigerant Pressure Sensor / Switch: Testing and Inspection
REFRIGERANT PRESSURE SWITCH INSPECTION 1.
Install the gas charging set.
2.
Disconnect the refrigerant pressure switch connector.
3.

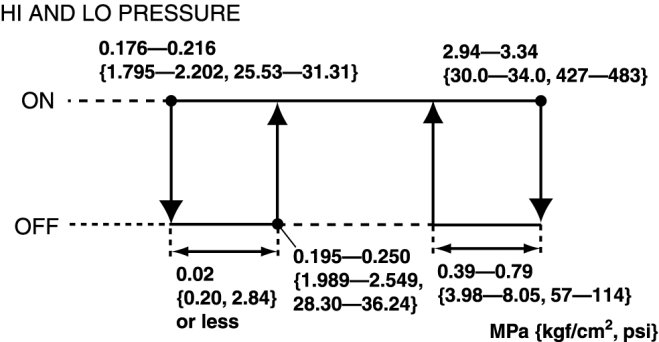

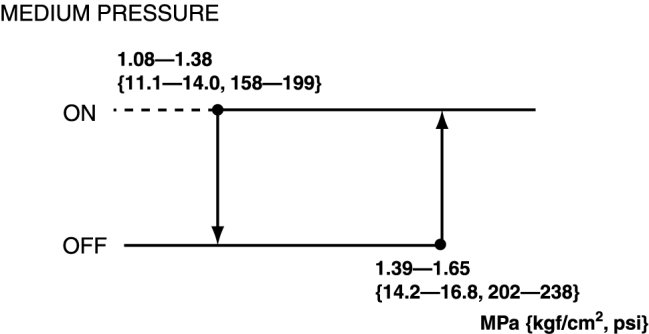

Verify the high-pressure side reading of the manifold gauge and continuity between the refrigerant pressure switch terminals.
-
If there is any malfunction, replace the refrigerant pressure switch.
