Instruments - Ambient Temperature Display Incorrectly

Bulletin No: 09-010/09

Last Issued: 03/03/2009

Subject:
AMBIENT TEMPERATURE DISPLAY

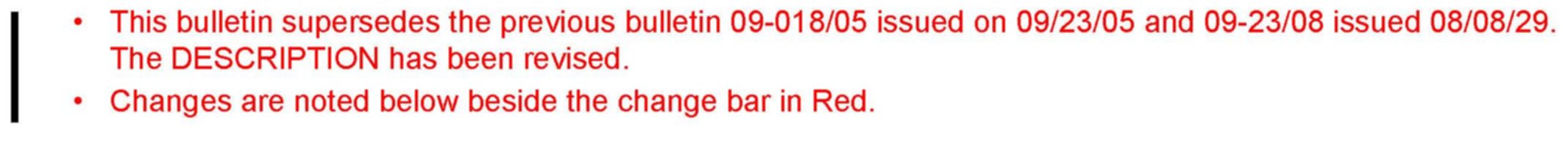

BULLETIN NOTE

APPLICABLE MODEL(S)/VINS
2006-2009 Mazda3 equipped with Ambient Temperature Display

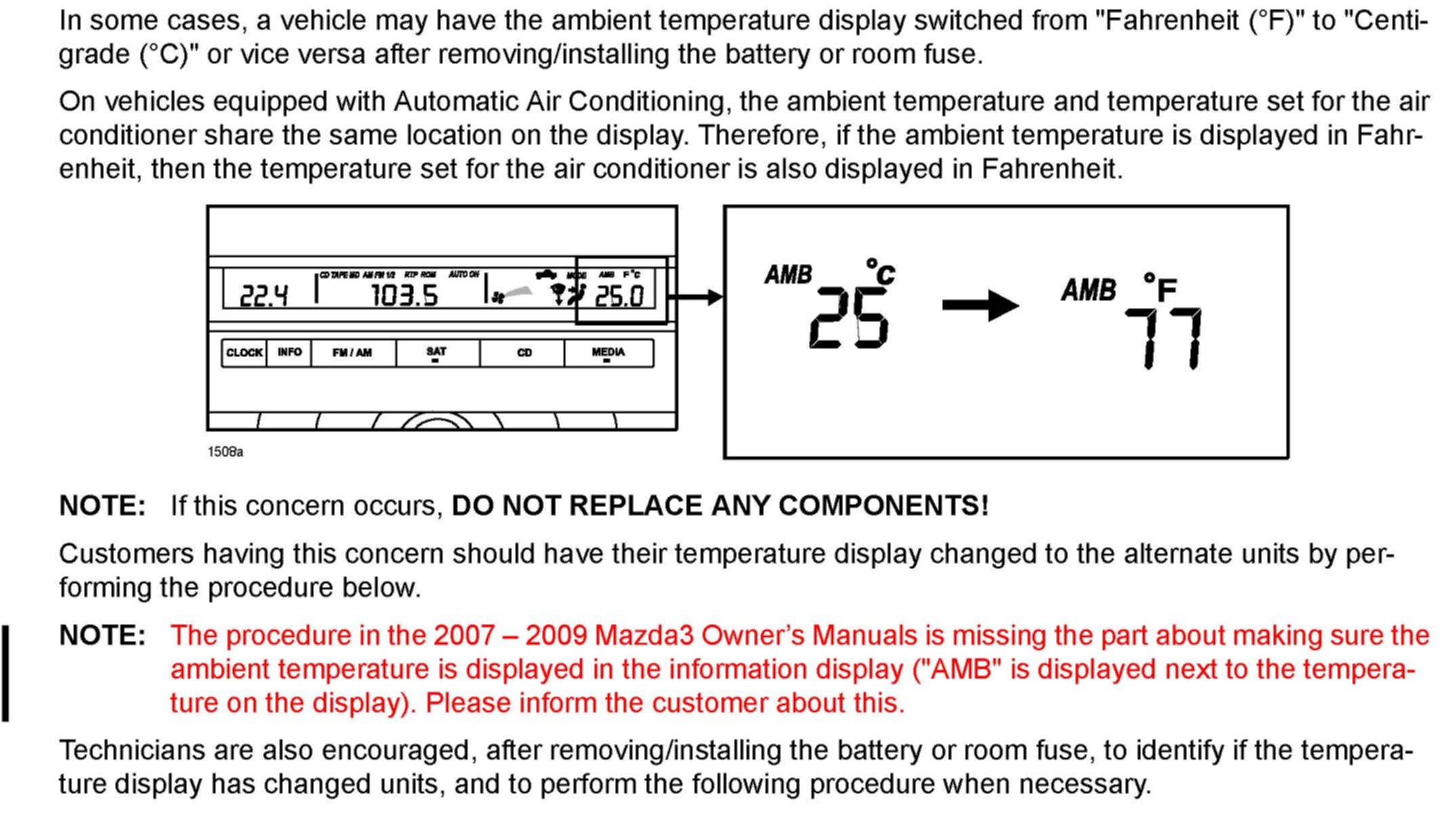

DESCRIPTION

PROCEDURE

1. Turn the ignition switch to "ON".

2. Make sure the ambient temperature is displayed in the information display ("AMB" is displayed next to the temperature on the display) by pressing the AMB button.

3. Make sure that the audio system is on. (If it is not, turn it on.)

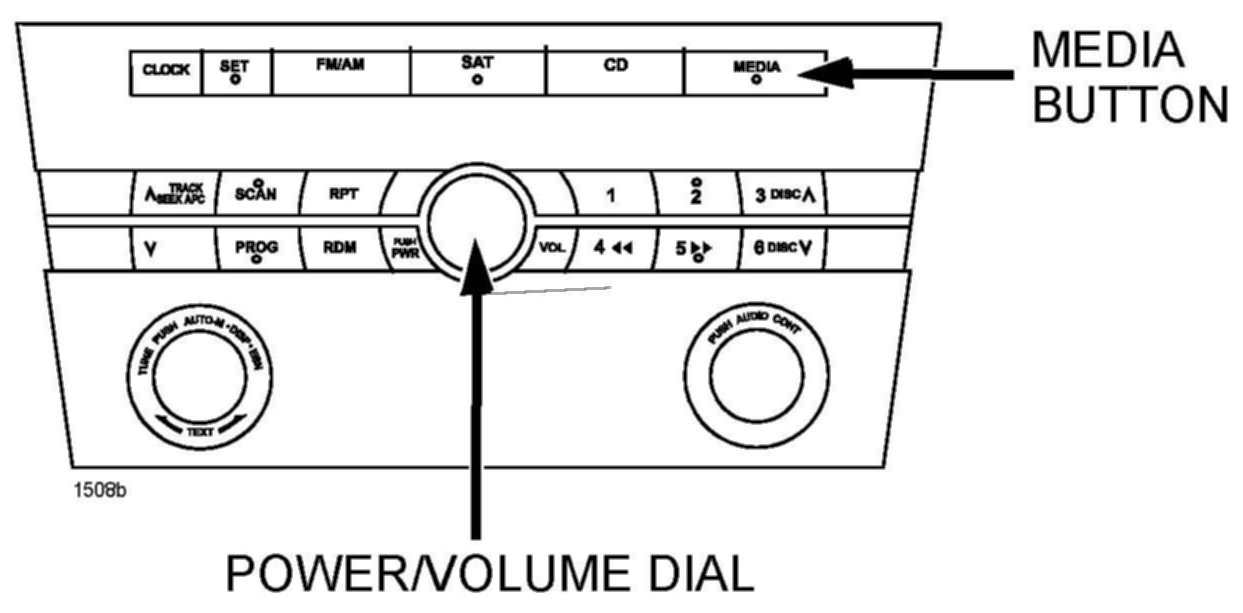

4. While pressing and holding the "Power/Volume" dial, press and hold the "MEDIA" button on the audio system for 5 seconds or more.

5. Release your fingers off the MEDIA button followed by the Power/Volume dial, at which point the display is switched.

6. Turn the ignition switch "OFF".

7. Turn the ignition switch "ON", and verify the display is correct.
