Backup Light Bulb: Service and Repair

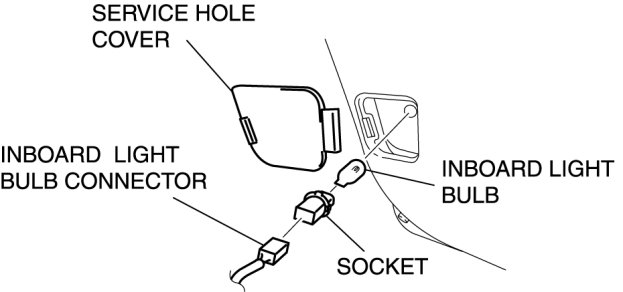

INBOARD LIGHT BULB REMOVAL/INSTALLATION5 Door 1.
Disconnect the negative battery cable.
2.
Remove the service hole cover.
3.
Disconnect the inboard light bulb connector.
4.
Remove the socket.
5.
Remove the inboard light bulb.
6.
Install in the reverse order of removal.
