Backup Lamp: Service and Repair




INBOARD LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the trunk lid trim. (4 door) (See .)

3. Remove the service hole cover. (5 door)

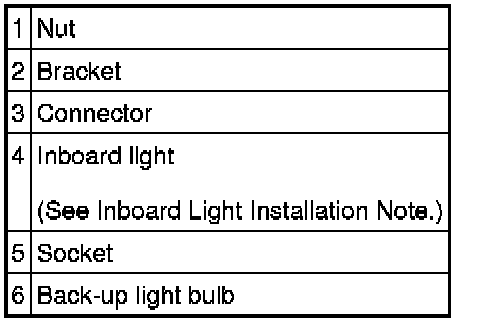

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.

Inboard Light Installation Note

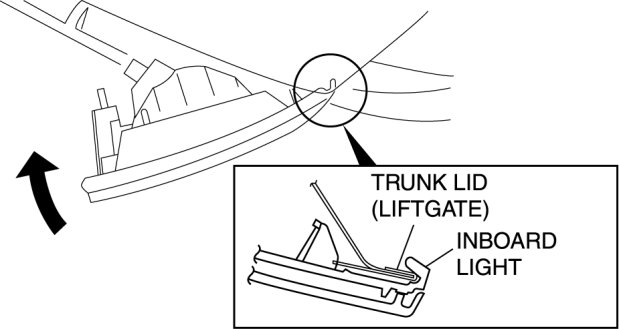

1. Insert the inboard light into the trunk lid (liftgate) as shown in the figure, then pivot it inward and fix in place.

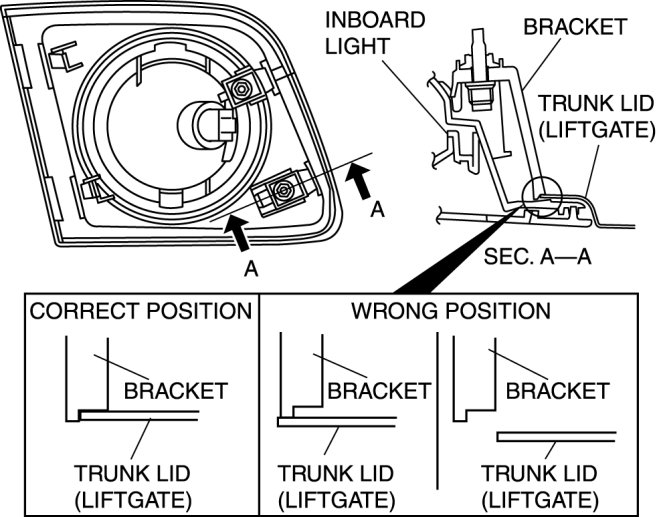

2. Push the bracket onto the trunk lid (liftgate) as shown in the figure and install.
