Tail Lamp: Service and Repair

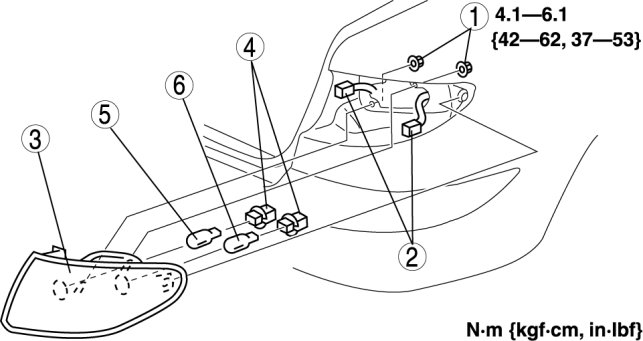

REAR COMBINATION LIGHT REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the trunk end trim. (4 door)
Trunk End Trim Removal/Installation 3.
Remove the fasteners and slightly bend back the trunk side trim. (4 door)
4.
Remove the service hole cover. (5 door)
5.

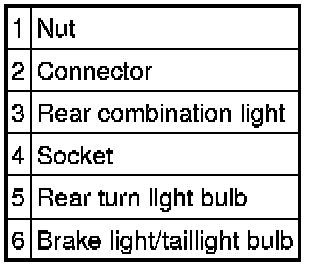

Remove in the order indicated in the table.
6.
Install in the reverse order of removal.
