Rear Upper Arm Removal/Installation




REAR UPPER ARM REMOVAL/INSTALLATION

1. Remove the evaporative mission (EVAP) system leak detection pump. Service and Repair Service and Repair

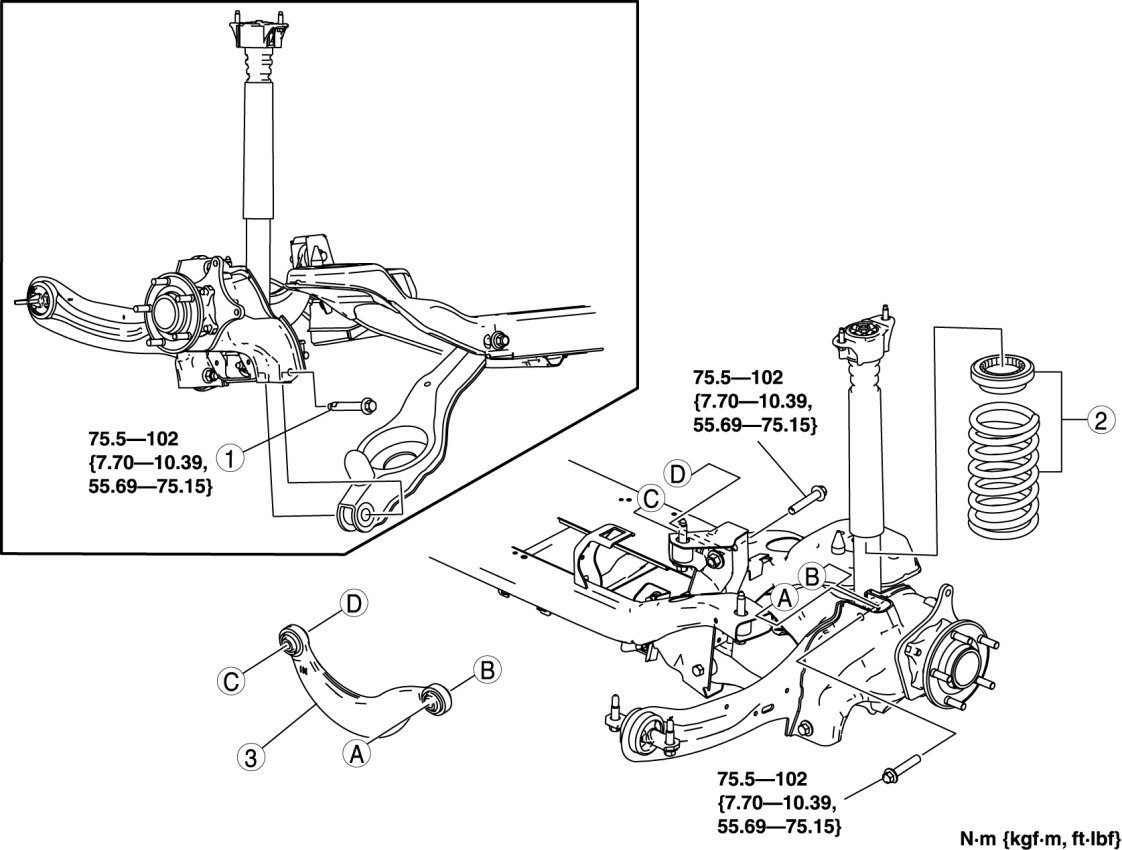

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. Inspect the wheel alignment and adjust it if necessary. Rear Wheel Alignment










Rear Lower Arm Outer Bolt Removal Note

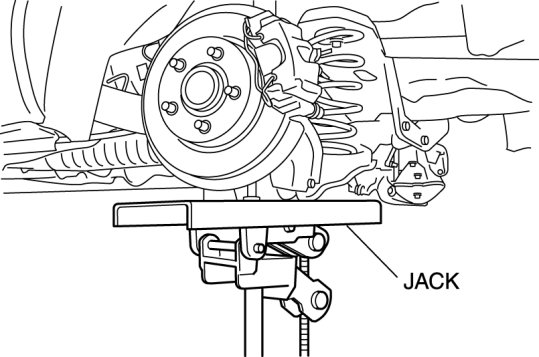

1. Support the rear lower arm using a jack.






2. Loosen the rear lower arm inner bolt.

3. Remove the rear lower arm outer bolt.

Rear Upper Arm Installation Note

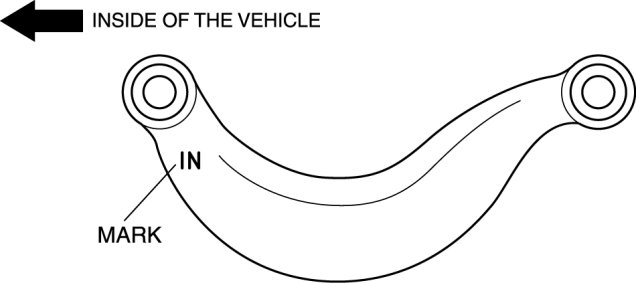

1. Install the rear upper arm so that IN mark is facing toward the inside of the vehicle.
