Engine - Engine Mount Bolt Torque Specification

Bulletin No: 01-047/09

Last Issued: 10/30/2009

Subject:
SPECIFICATION CHANGE OF ENGINE MOUNT INSTALLATION BOLT

BULLETIN NOTE
^ This bulletin supersedes the previous bulletin 01-047/09 issued on 10/16/09. The DESCRIPTION has been revised.

^ Changes are noted below with a black bar and/or asterisks.

APPLICABLE MODEL(S)/VINS
2004-2010 Mazda3 with VINs lower than JM1 BL**** ** 163897 (produced before June 1, 2009)

2006-2009 Mazda5 with VINs lower than JM1 CR**** ** 356308 (produced before June 1, 2009)

DESCRIPTION

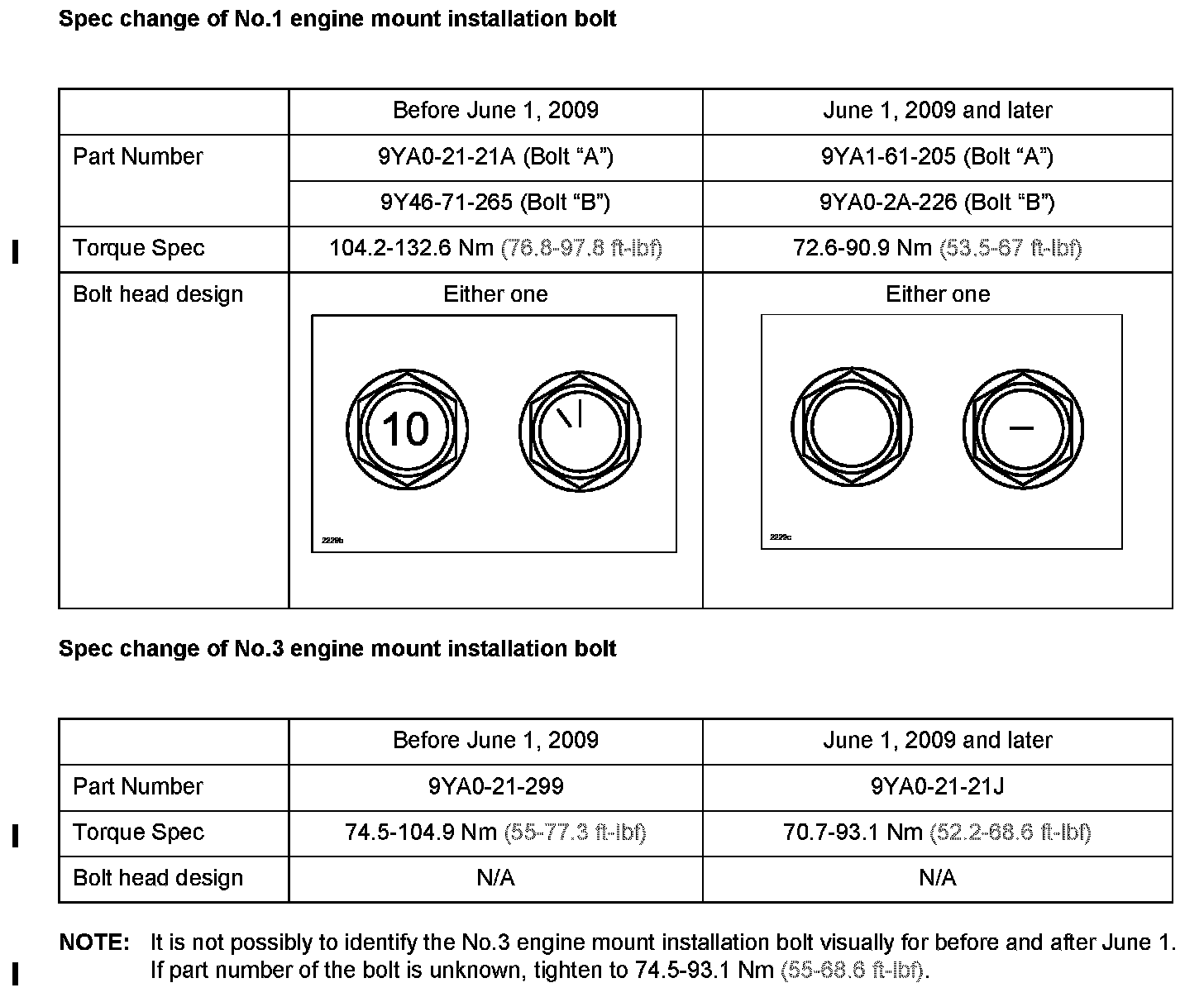

The design and torque spec of the installation bolts for the No.1 (A and B) and No. 3 engine mounts has been changed. Therefore, tighten the bolt by referring to the following information when it is replaced.

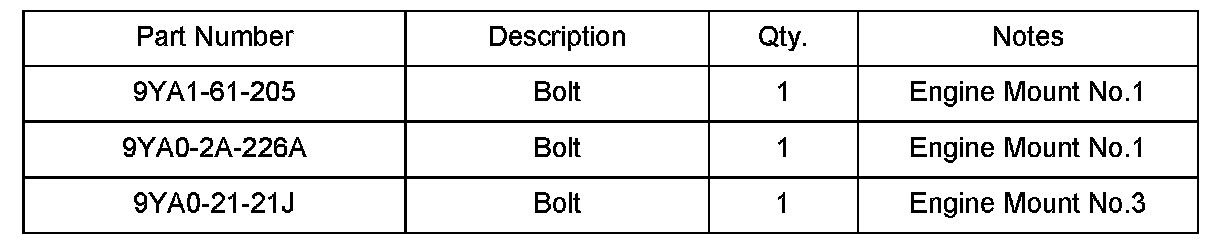

PARTS INFORMATION
