CX-9 Audio Unit Software Programming Tool Connection Procedure

CX-9 Audio Unit Software Programming Tool Connection Procedure

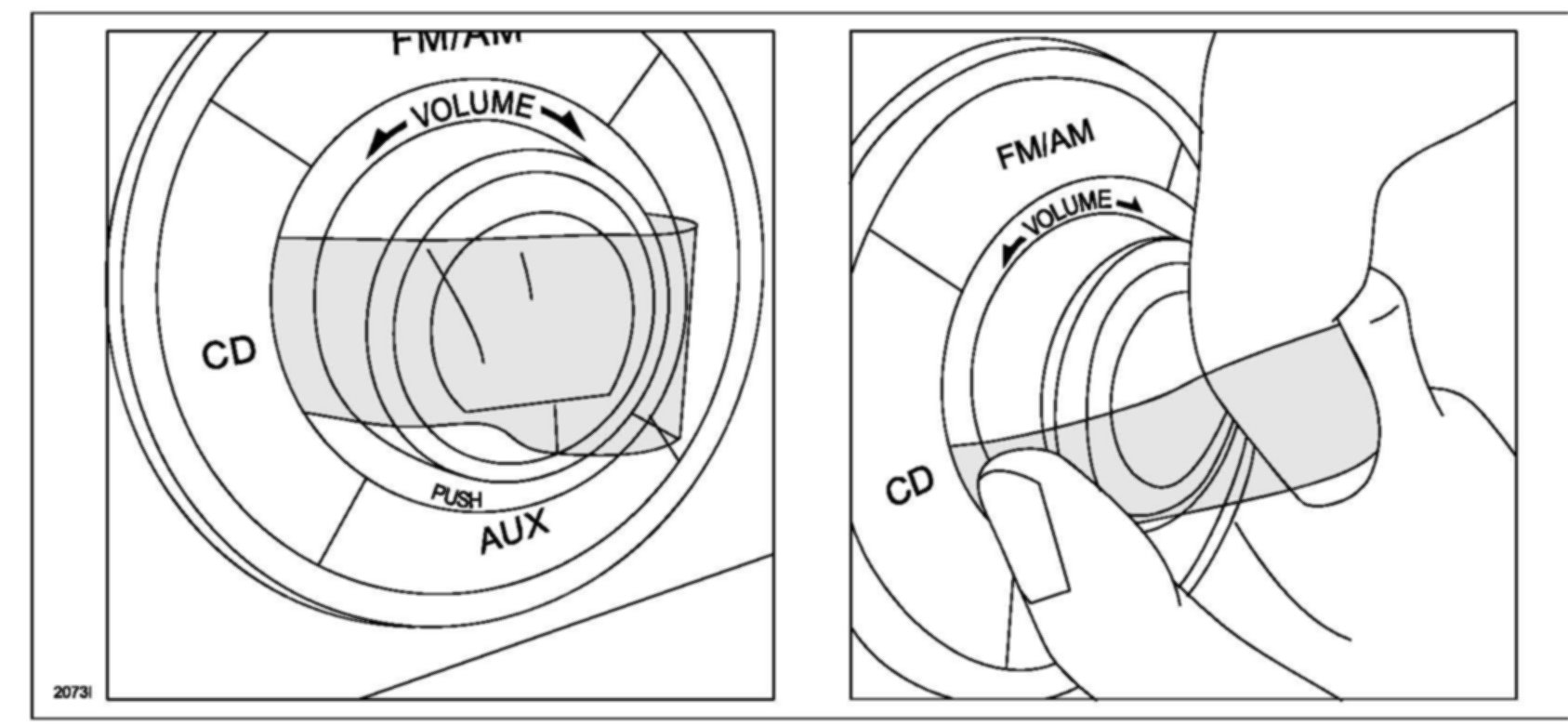

1. Remove the center knob by pulling out using a firm grip, or by using tape as shown.

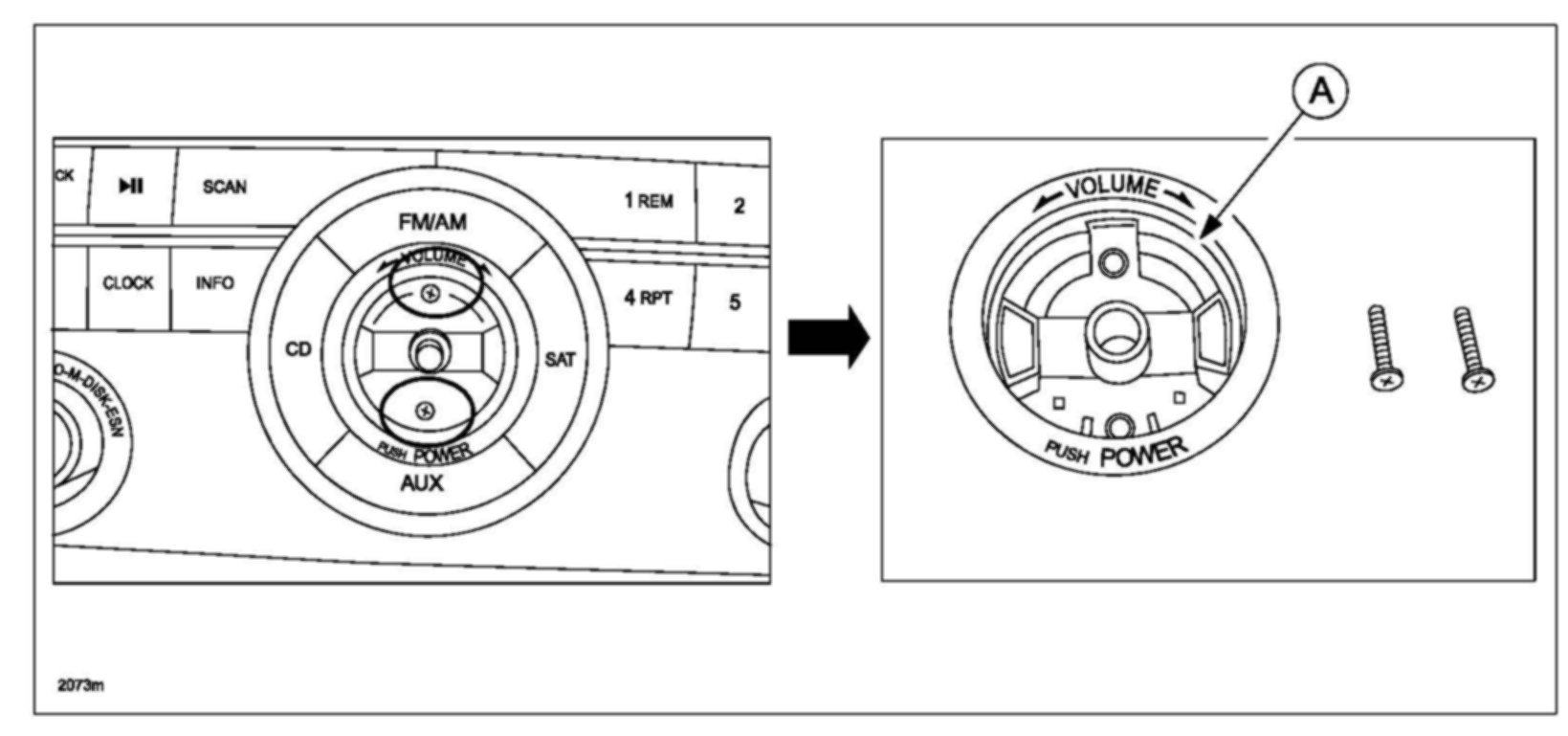

2. Remove the two screws, and then remove the inner cover (A).

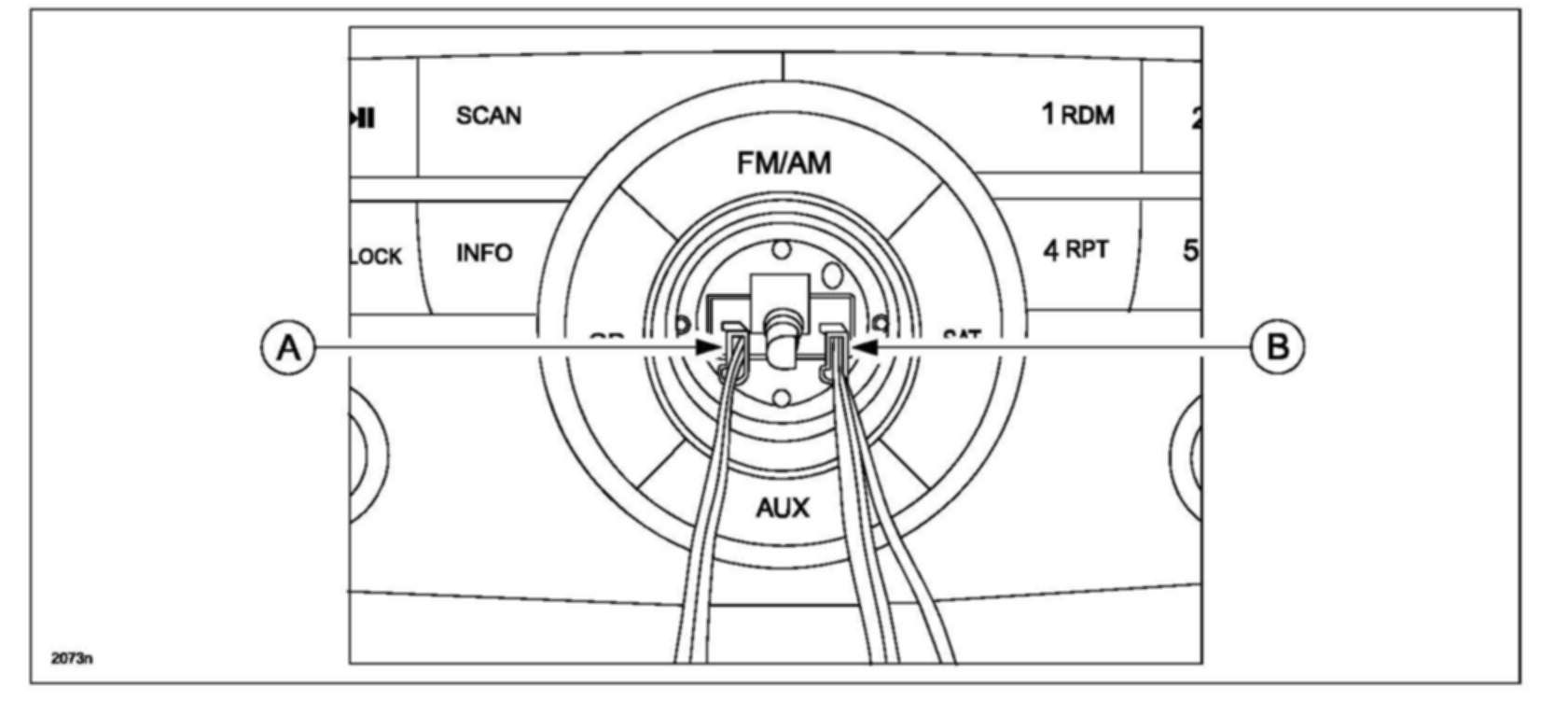

3. Connect the Audio Unit Software Programming Tool connectors.

a. Connect the 4P connector with blue/red/white wires into the left connector (A) under the removed knob.

b. Connect the 4P connector with red/white wires into the right connector (B) under the removed knob.
