Differential Disassembly

Differential Disassembly
1. Perform the preinspection before disassembly.

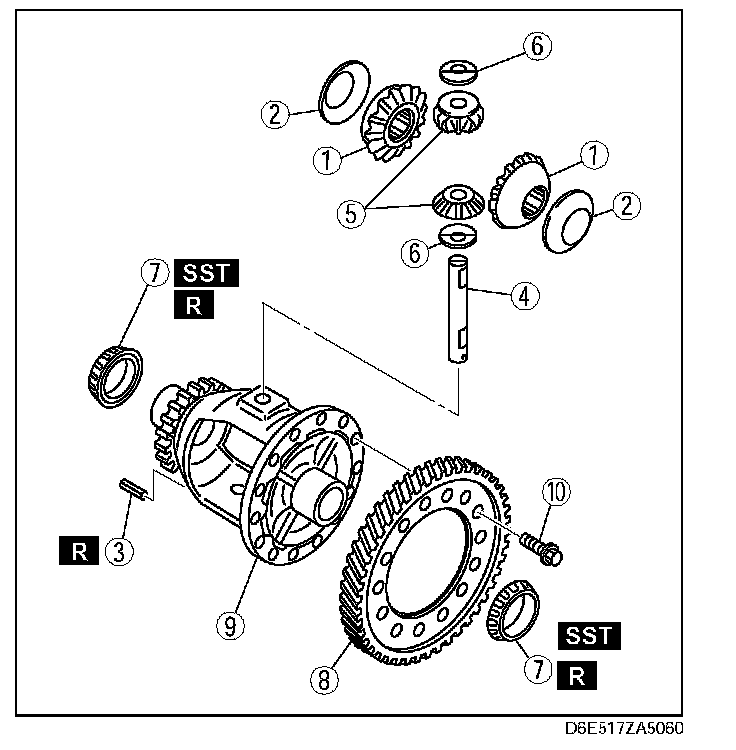

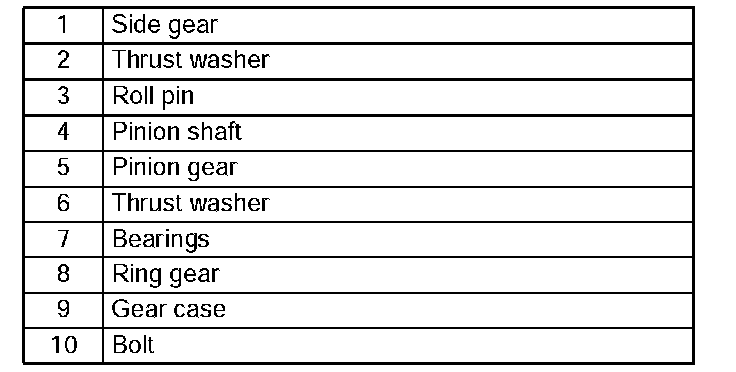

2. Disassemble in the order indicated in the table.





Roll pin disassembly note
1. Place the gear case in a vise.





2. Insert a 2.0 mm (0.07 in) punch into the roll pin hole from the ring gear side, and remove the roll pin.

Bearings disassembly note

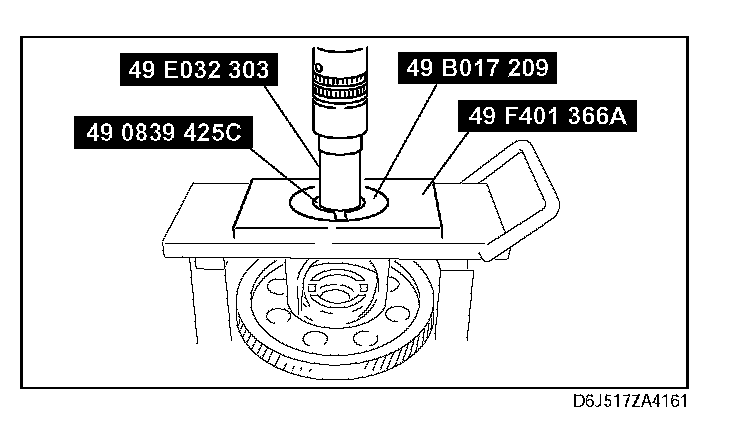

1. Remove the bearing (speedometer drive gear side) from the gear case using the SSTs.

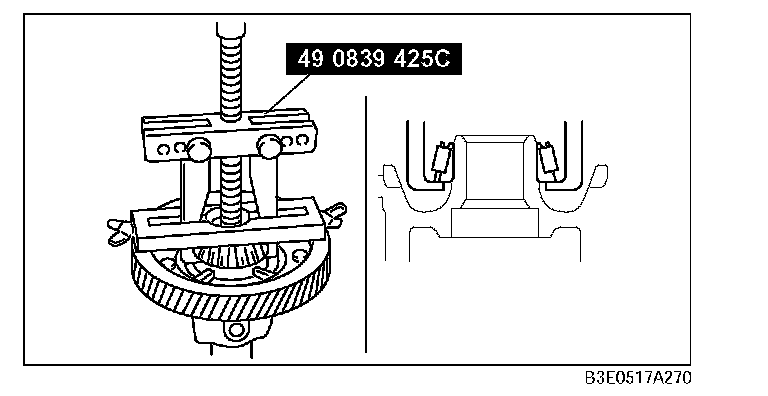

2. Remove the bearing (ring gear side) from the gear case using the SST.
