Direct Clutch Piston Disassembly Note
Direct Clutch Piston Disassembly Note 1.
Set the direct clutch drum onto the transaxle case.
2.

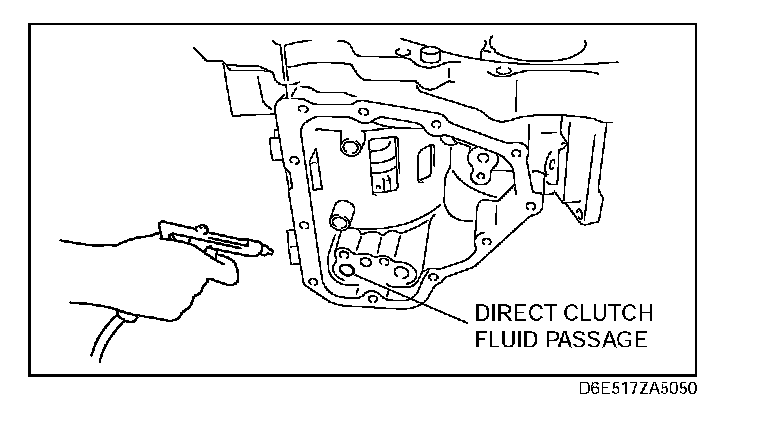

Remove the direct clutch piston from the direct clutch drum by applying compressed air through the fluid passage.
Air pressure:
392-441 kPa (4.0-4.5 kgf-cm2, 57-63 psi)
