Shift Cable: Adjustments




SELECTOR CABLE ADJUSTMENT

1. Remove the console. Removal and Replacement

2. Shift the selector lever to P position.

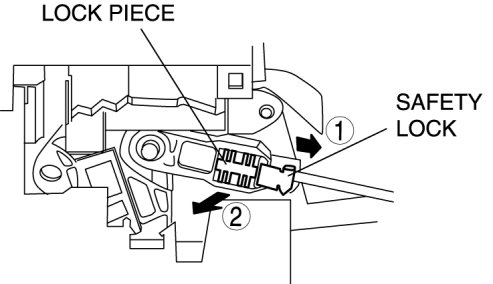

3. Unlock the lock piece of the selector cable (selector lever side) in the order as shown in the figure.






4. Verify that the manual shaft is in the P position.

5. Lock the lock piece and safety lock of the selector cable (selector lever side) in the order as shown in the figure.






6. Install the console. Removal and Replacement

7. Shift the selector lever from the P position to M range, and make sure that there are no other components in that area to interfere with the lever.
