Input/Turbine Speed Sensor Removal/Installation [FS5A-EL]




INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [FS5A-EL]

1. Remove the battery duct and battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the battery, battery box and battery tray. Removal and Replacement

4. Remove the air cleaner component. Service and Repair

5. Disconnect the input/turbine speed sensor connector.

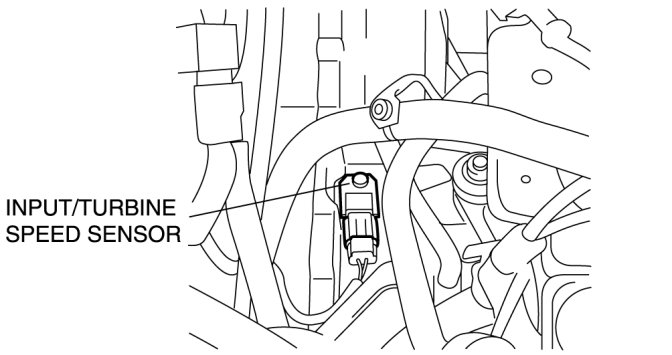

6. Remove the input/turbine speed sensor.

7. Apply ATF to a new O-ring and install it on a new input/turbine speed sensor.

8. Install the input/turbine speed sensor.

Tightening torque
- 8-11 Nm {82-112 kgf-cm, 71-97 in-lbf}

9. Connect the input/turbine speed sensor connector.

10. Install the air cleaner component. Service and Repair

11. Install the battery, battery box and battery tray. Removal and Replacement

12. Connect the negative battery cable.

13. Install the battery duct and battery cover. Removal and Replacement
