Transaxle Fluid Temperature (TFT) Sensor Removal/Installation [FN4A-EL]




TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [FN4A-EL]

WARNING:
- A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool before replacing the ATF.

1. Remove the oil pan. Control Valve Body Removal [FN4A-EL]

2. Remove the control valve body. Control Valve Body Removal [FN4A-EL]

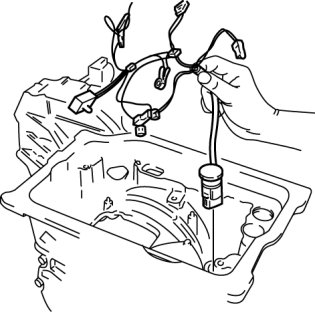

3. Remove the coupler component.






4. Install a coupler component.

5. Install the control valve body. Control Valve Body Installation [FN4A-EL]

6. Install the oil pan. Control Valve Body Installation [FN4A-EL]

7. Perform the mechanical system test. FN4A-EL Transmission
