Pressure Plate: Testing and Inspection

CLUTCH COVER INSPECTION

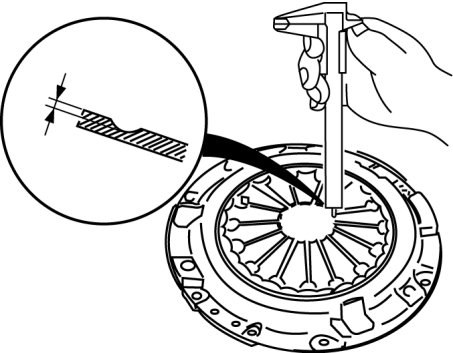

1. Measure the wear of the diaphragm spring fingers.






- If it exceeds the maximum specification, replace the clutch cover.

Clutch cover diaphragm spring fingers maximum depth
- 0.6 mm {0.024 in}

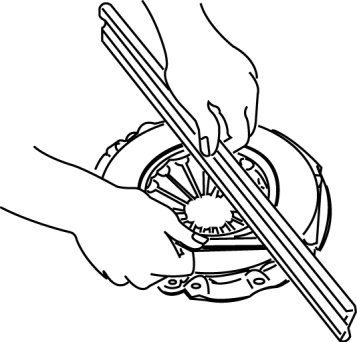

2. Measure the flatness of the pressure plate with a straight edge and a feeler gauge.






- If it exceeds the maximum specification, replace the clutch cover.

Maximum clearance of flatness of the pressure plate
- LF, L3: 0.5 mm {0.020 in}
- L3 WITH TC: 0.3 mm {0.012 in}

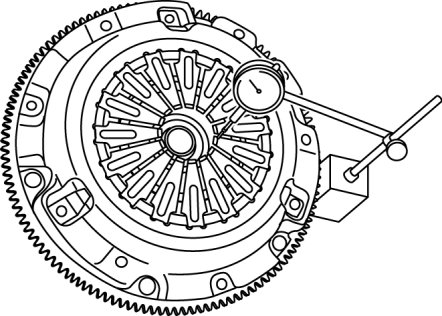

3. When checking the diaphragm spring fingers, mount a dial indicator on the cylinder block.

4. Rotate the flywheel and check for misaligned diaphragm spring fingers.






- If it exceeds the maximum specification, replace the clutch cover.

Clutch cover diaphragm spring fingers maximum height difference
- 1.0 mm {0.039 in}
