Wiper Motor Linkage: Service and Repair




WINDSHIELD WIPER LINK DISASSEMBLY/ASSEMBLY

Disassembly

NOTE:
- Do not replace link parts individually. If it is necessary to replace any part, replace the windshield wiper link as a single unit.

Assembly

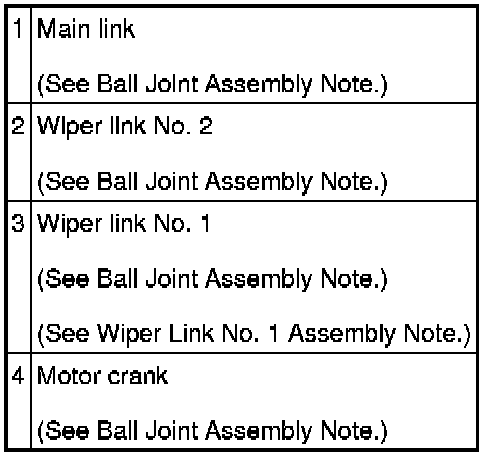

1. Assemble in the order indicated in the table.

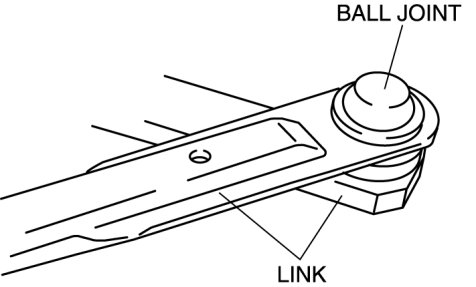

Ball Joint Assembly Note

1. Use a clean rag to protect the link and squeeze using pliers.






Wiper Link No. 1 Assembly Note

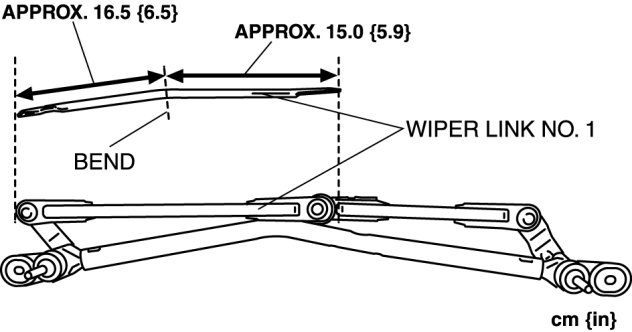

1. Assemble the wiper link No. 1 positioned as shown in the figure.
