NO.3 NO SOUND FROM ALL SPEAKERS [ENTIRE AUDIO SYSTEM]
Without Bose(R)
Troubleshooting Hints:
Diagnostic procedure

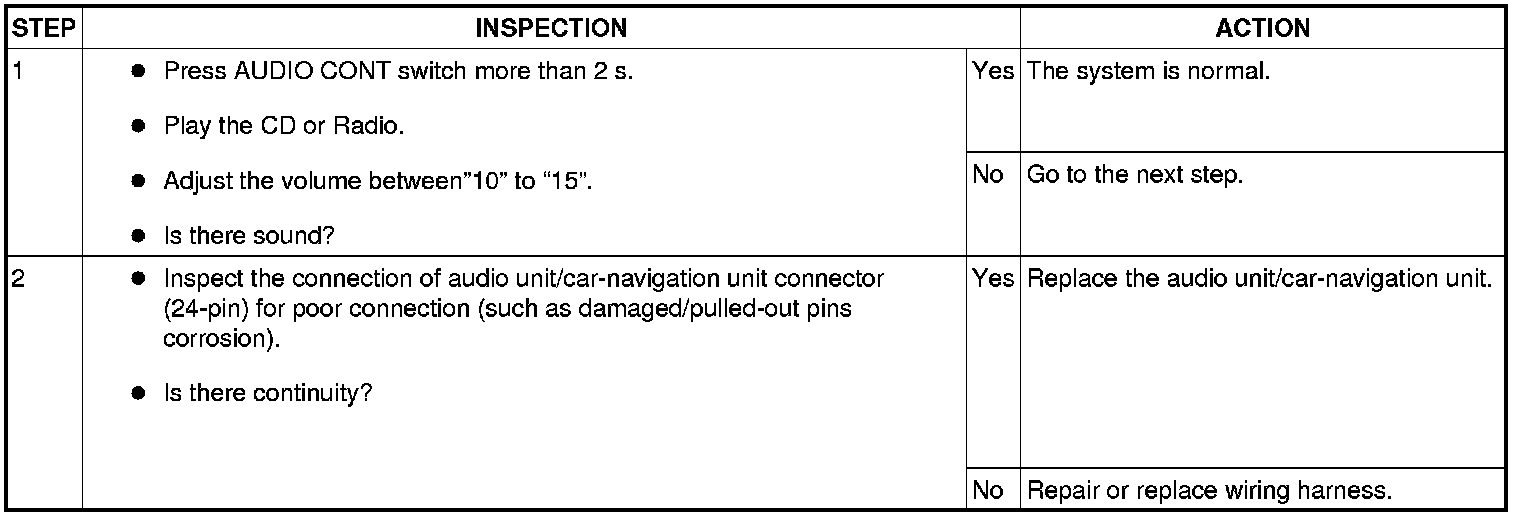

Step 1-Step 2:
With Bose(R)
Troubleshooting Hints:
Diagnostic procedure

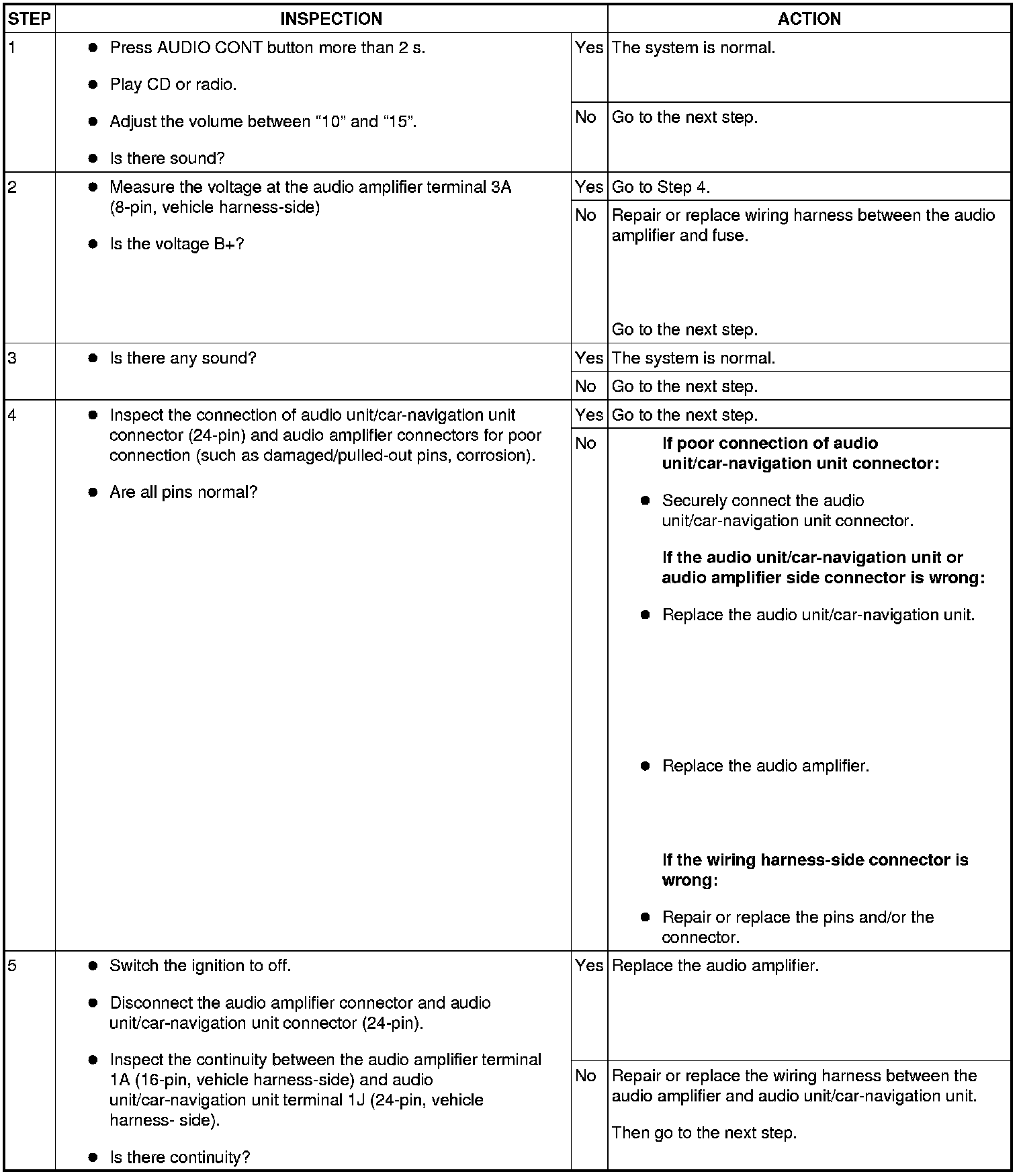

Step 1-Step 5:

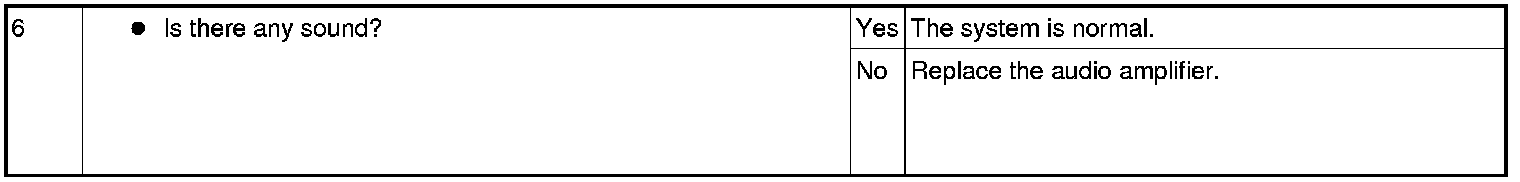

Step 6:
