Component Tests and General Diagnostics

ABS/TCS HU/CM INSPECTION

1. Disconnect the ABS/TCS HU/CM connectors.

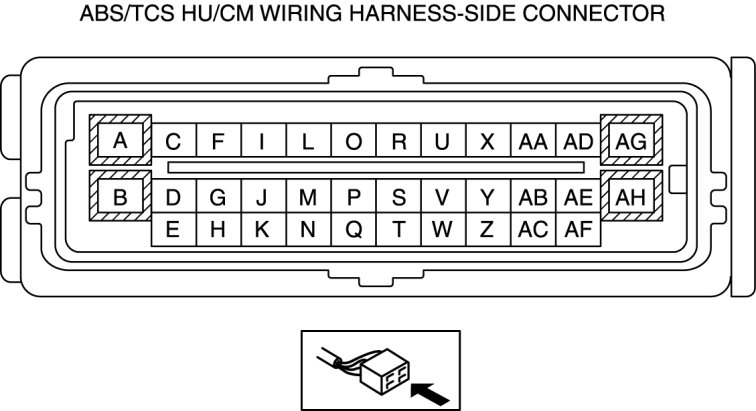

2. Attach the tester lead to the ABS/TCS HU/CM wiring harness-side connector and inspect the voltage, continuity, or resistance according to the standard (reference value) in the table below.

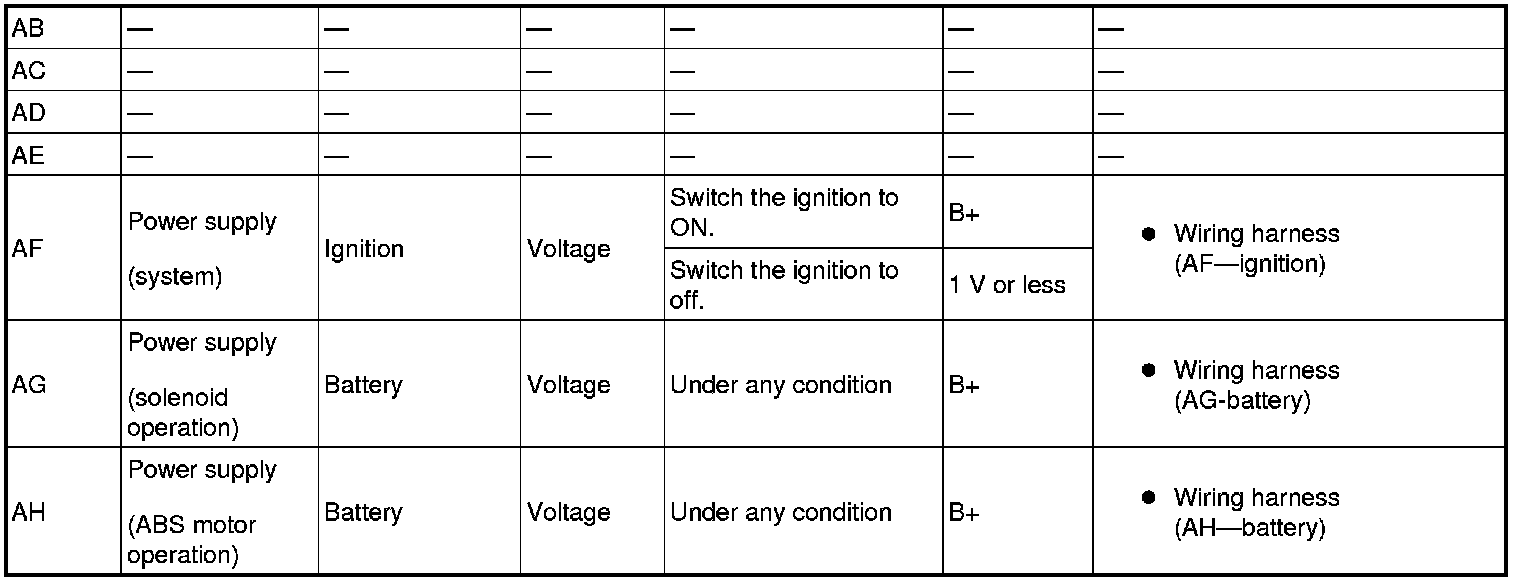

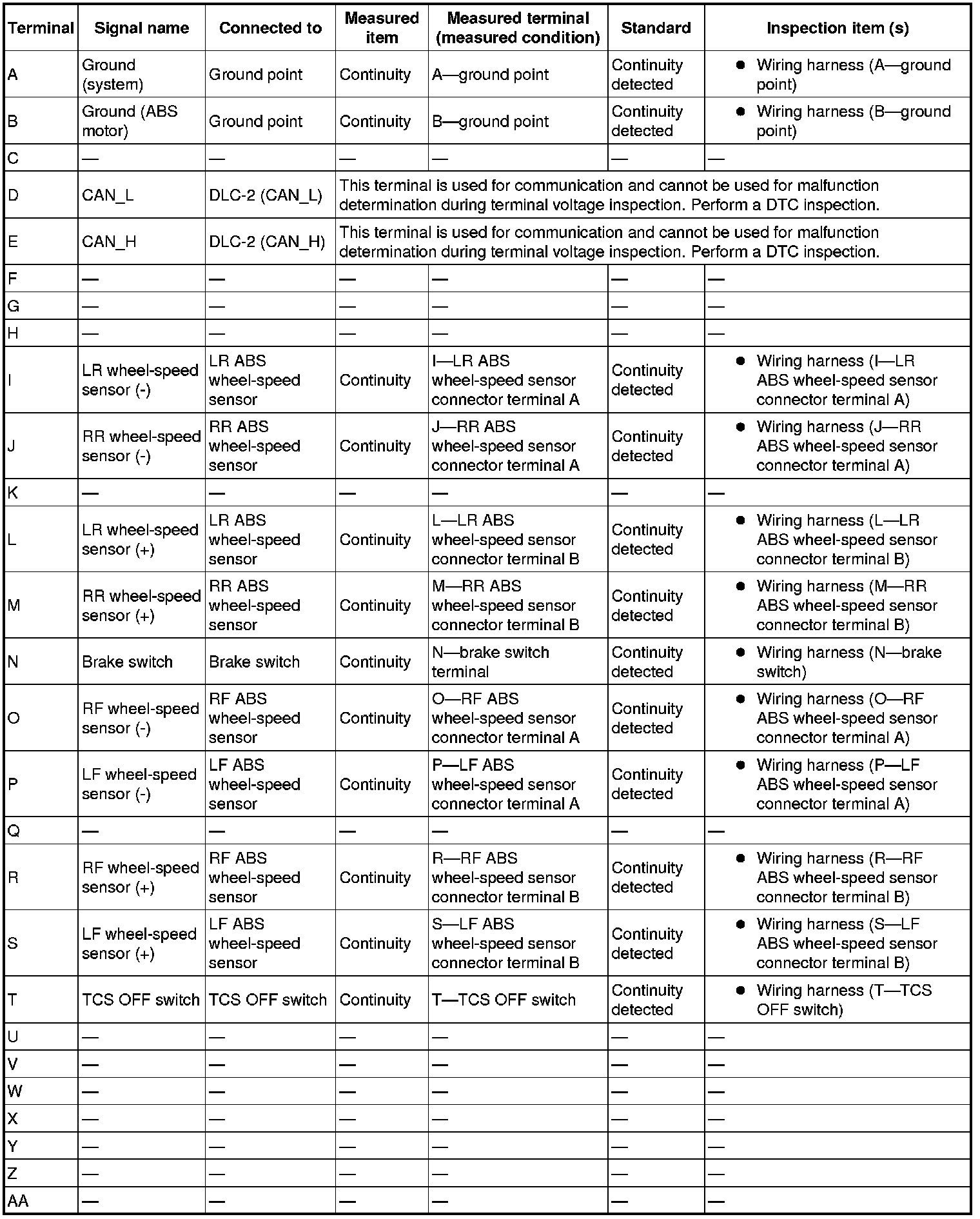

Standard (reference)
