No.2 Any Of The Following Lights Stay On: ABS Warning, Brake Warning, DSC Indicator And/Or DSC Off

NO.2 ANY OF THE FOLLOWING LIGHTS STAY ON: (ABS WARNING LIGHT, BRAKE SYSTEM WARNING LIGHT, DSC INDICATOR LIGHT AND/OR DSC OFF LIGHT) [DYNAMIC STABILITY CONTROL (DSC)]

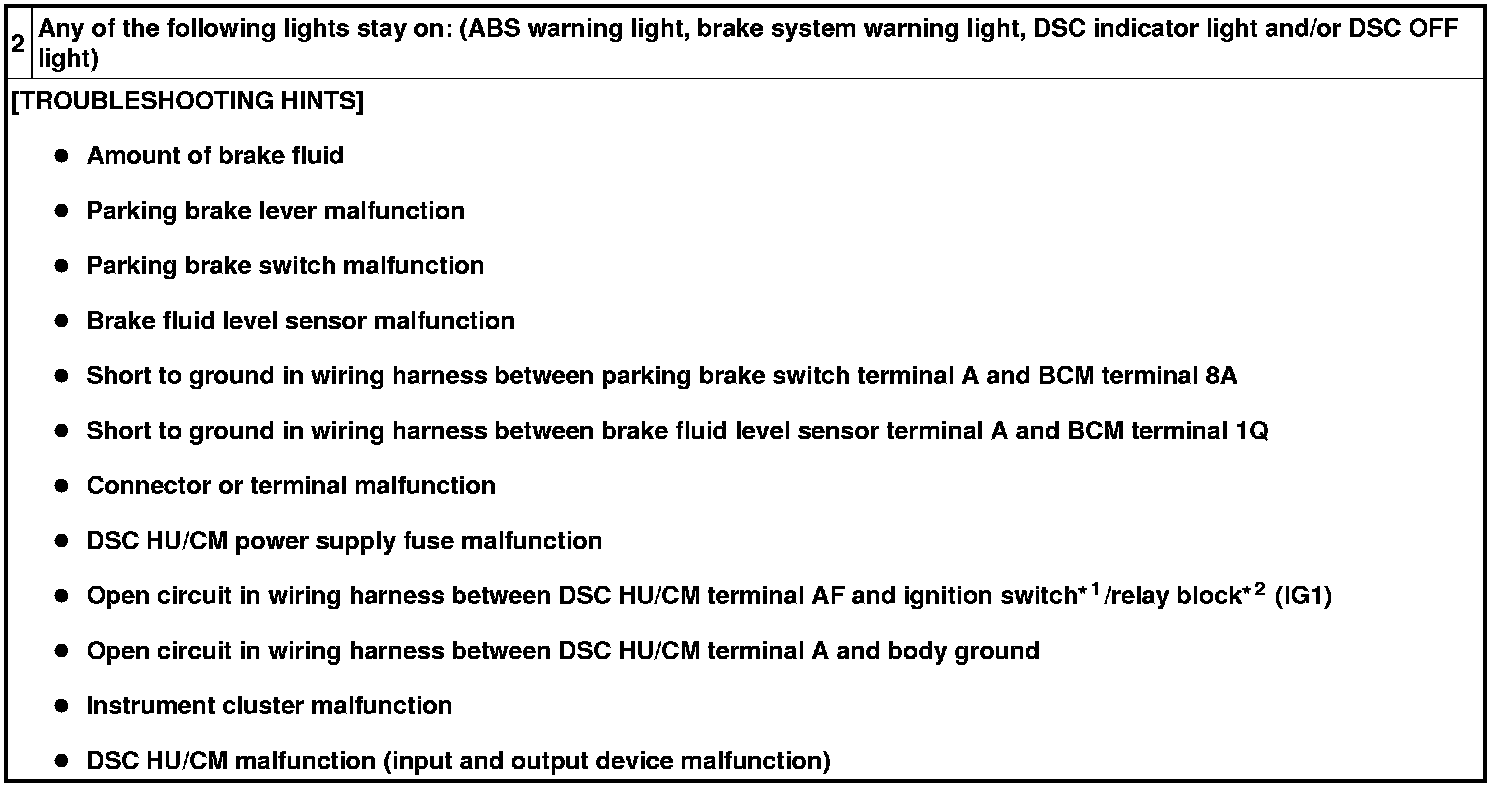

Troubleshooting Hints:

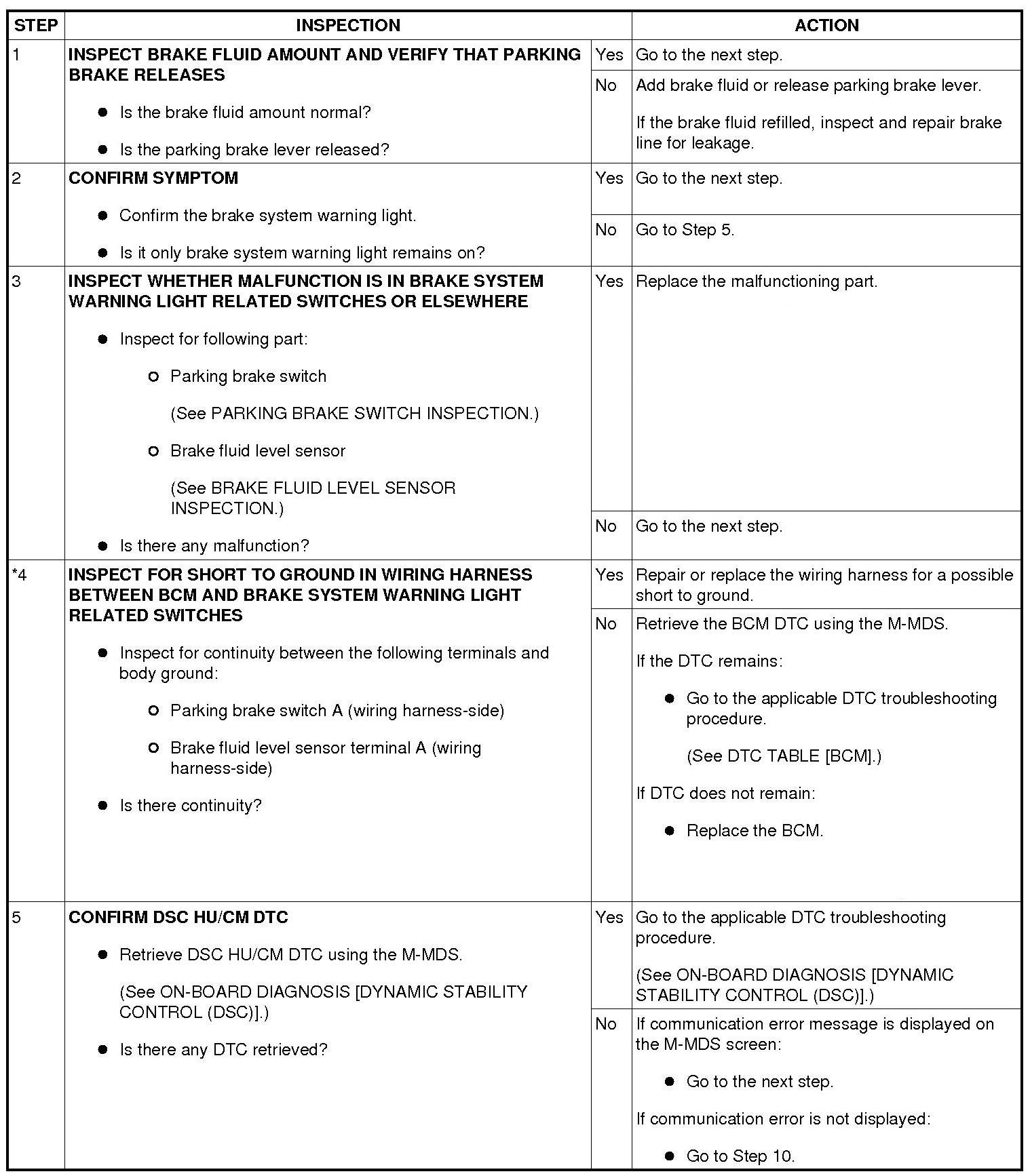

Diagnostic procedure

Step 1-Step 5:

Step 6-Step 11:

- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harness are connected correctly and undamaged.
