Forward Clutch Disassembly/Assembly

FORWARD CLUTCH DISASSEMBLY/ASSEMBLY
1. Perform the preinspection before disassembly.
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

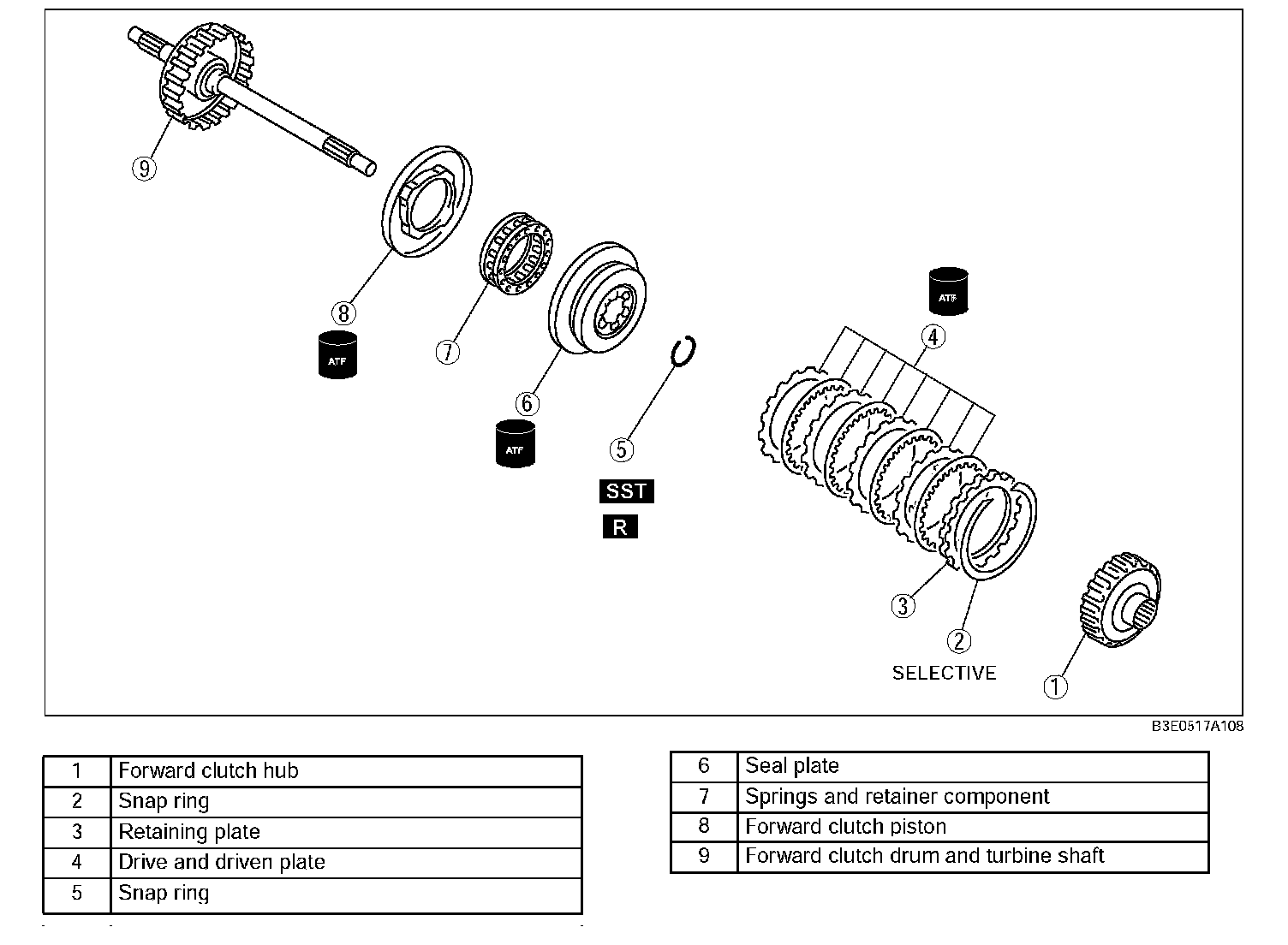

Forward Clutch Disassembly/Assembly:
