Output Gear and Inner Race Assembly Note

Output gear And Inner Race Assembly Note

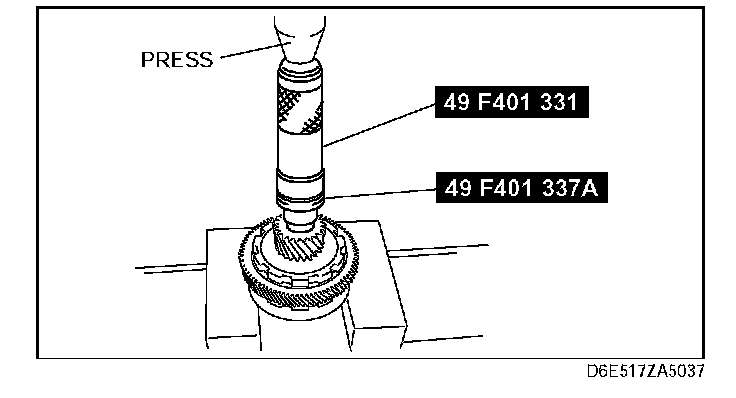

1. Install the output gear to the secondary gear component using the SST.

Press-in force:
20 kN (204 kgf, 450 lbf.)





2. Install the inner race to the secondary gear component using the SST.

Press-in force:
20 kN (204 kgf, 450 lbf.)
