Radiator Grille

RADIATOR GRILLE

Removal and Installation

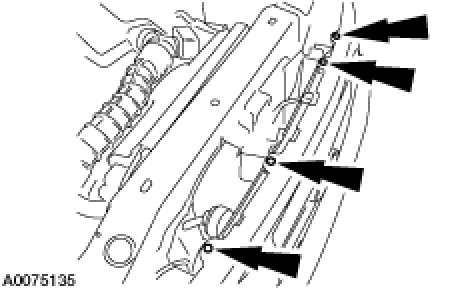

1. Remove the radiator grille screws.

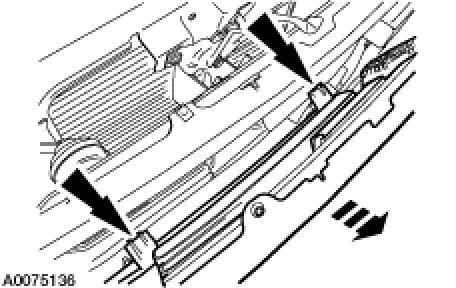

1. Remove the radiator grille opening panel.

- Position the opening panel outward and release the retaining clips.

2. To install, reverse the removal procedure.
