Interior Moulding / Trim: Locations



-

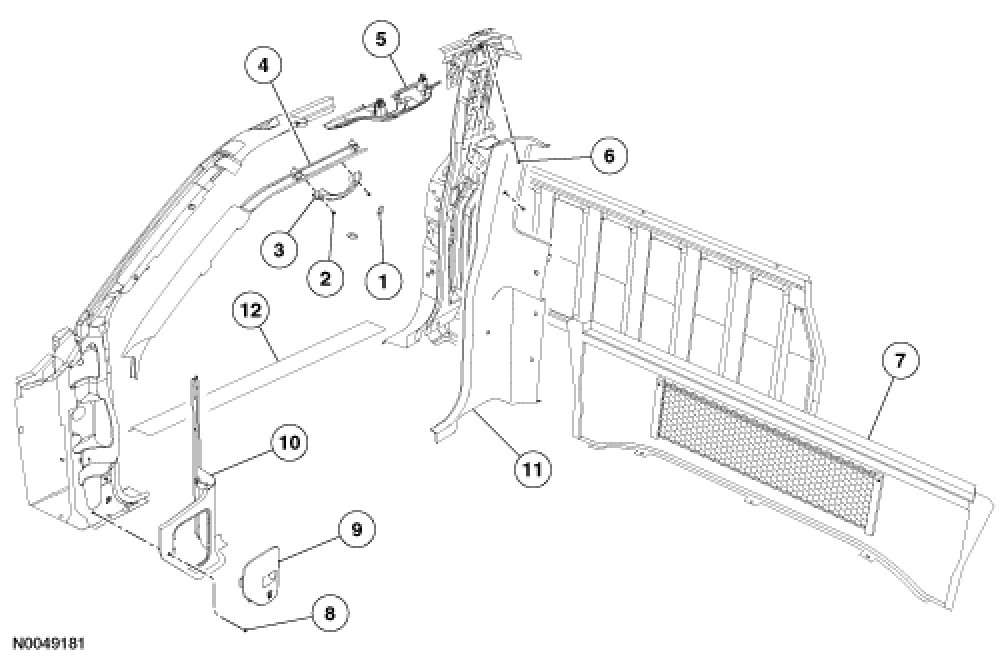

INTERIOR TRIM - COMPONENT VIEW

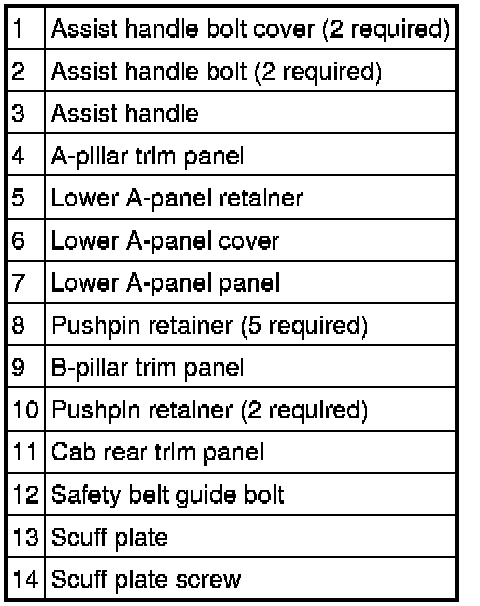

2 Door, Regular Cab

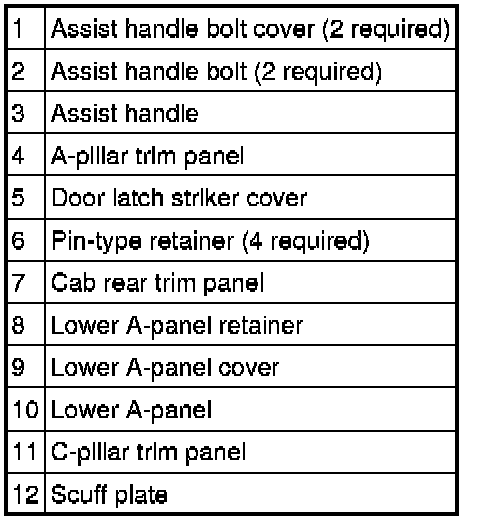

4-Door, Cab Plus
