Symptom Related Diagnostic Procedures



-
SYMPTOM TROUBLESHOOTING CHART - CONVENTIONAL BRAKE SYSTEM

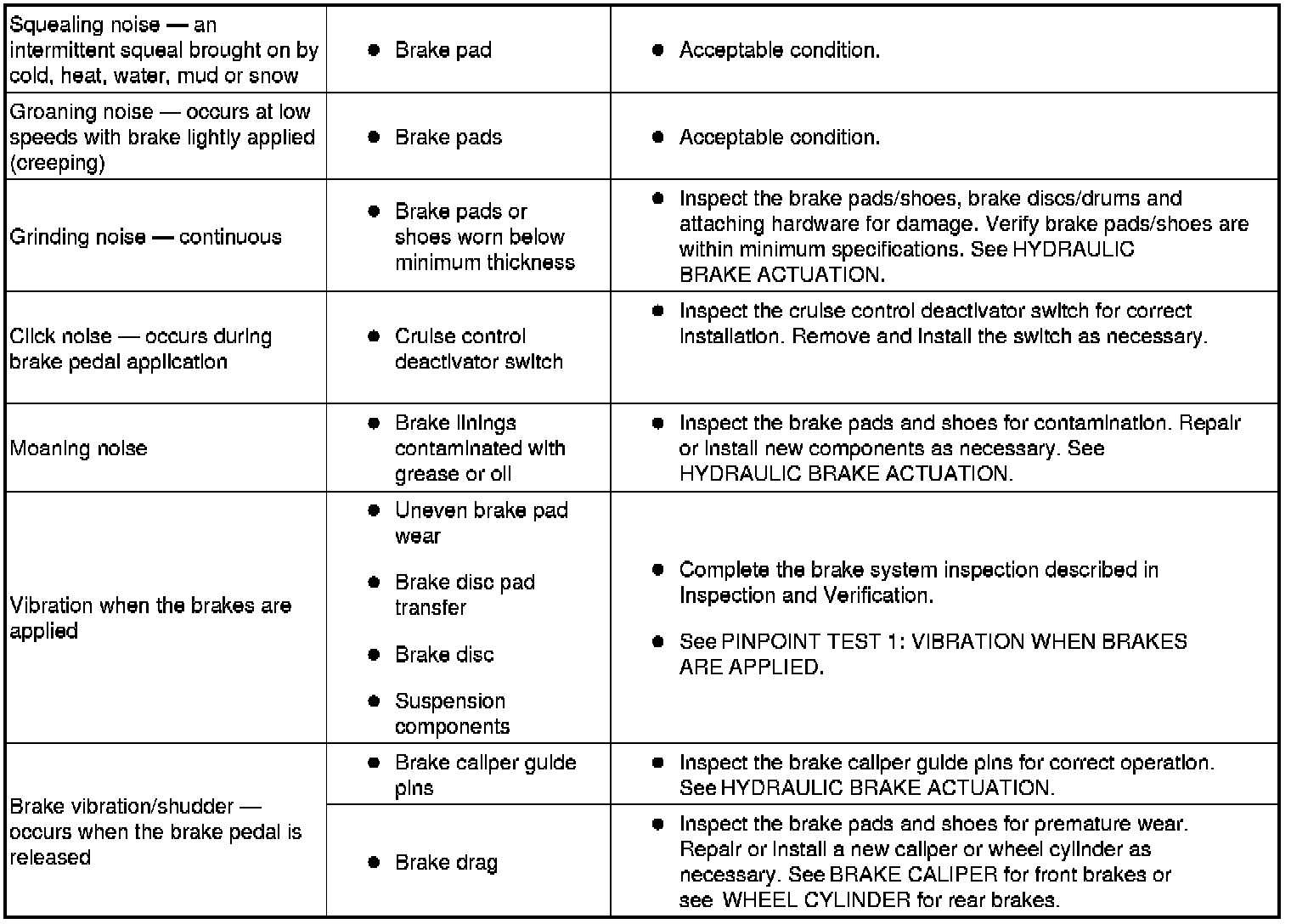

Symptom Troubleshooting Chart (Part 1):

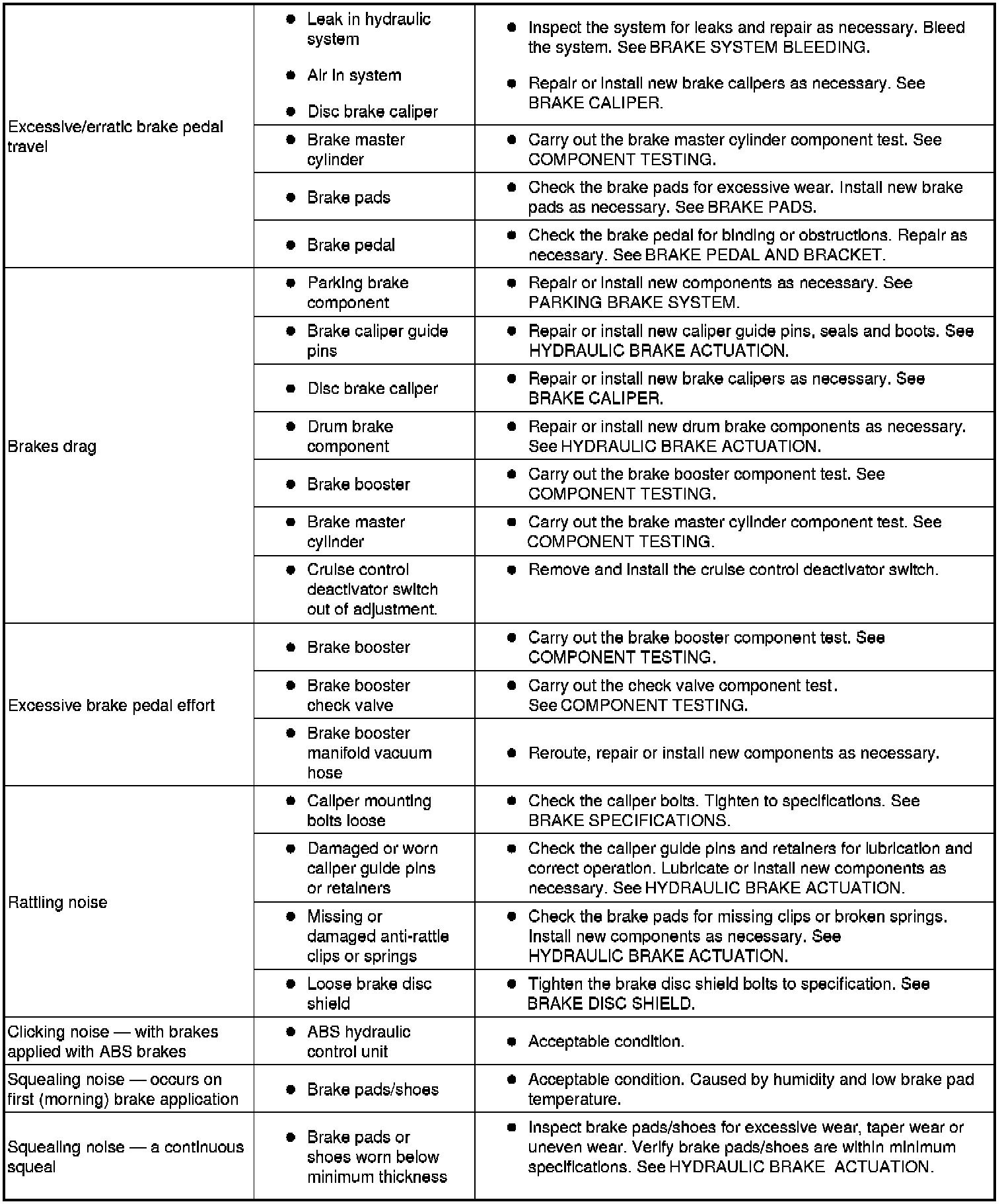

Symptom Troubleshooting Chart (Part 2):

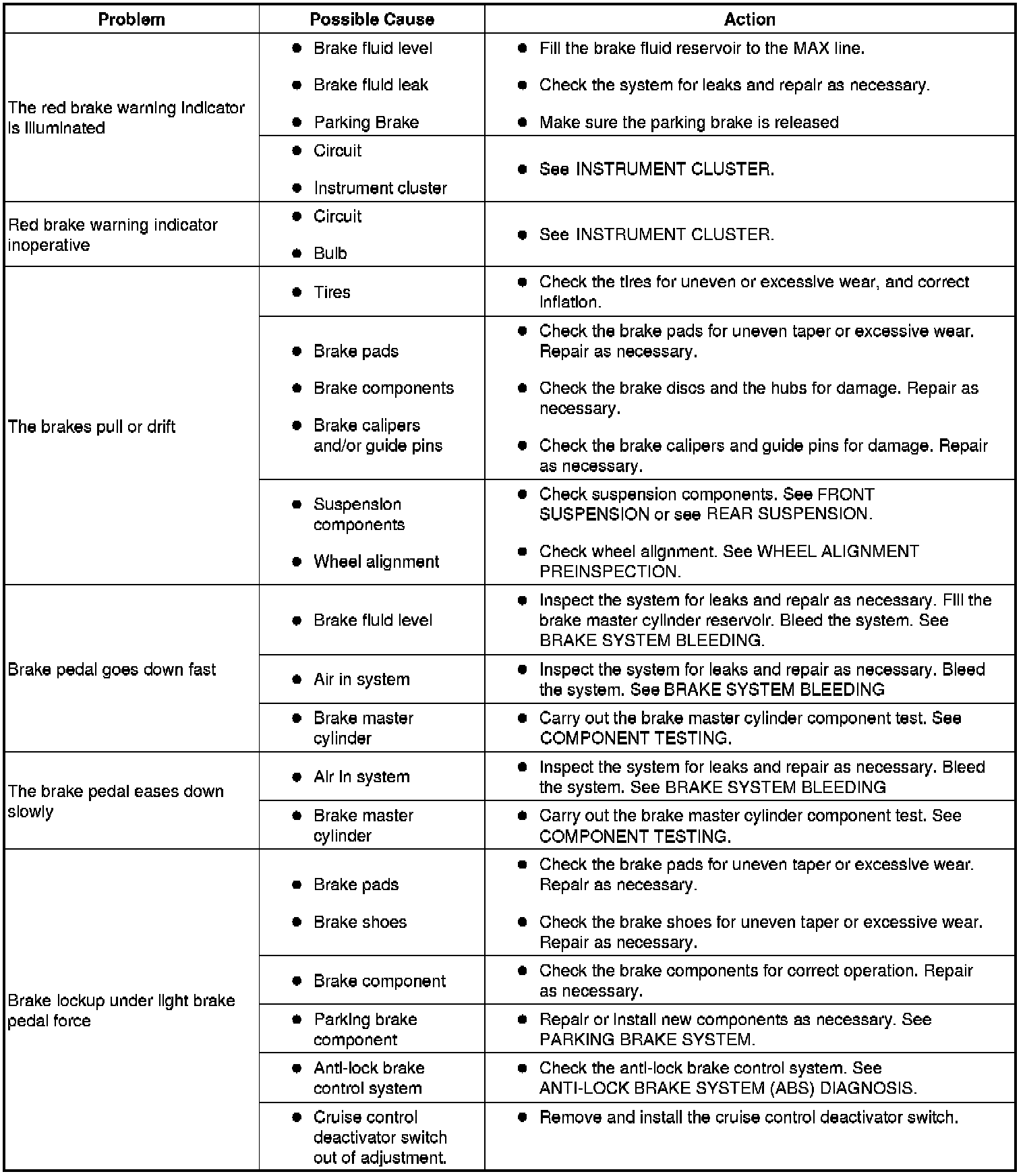

Symptom Troubleshooting Chart (Part 3):
