Instrument Panel Register Center Removal / Installation

INSTRUMENT PANEL REGISTER CENTER REMOVAL / INSTALLATION

1. Disconnect the negative battery cable.

2. Using the special tool, remove the radio chassis.

3. Disconnect the antenna lead and the wire harness connectors.

4. Remove the center trim finish panel.

5. Disconnect the wire harness connectors.

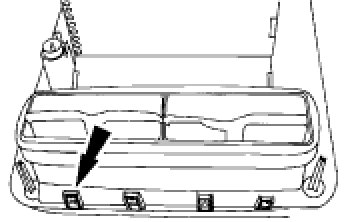

6. Release the eight clips and remove the center instrument panel register from the center trim finish panel.






7. To install, reverse the removal procedure.
Tightening torque
2-3 Nm { 20-31 kgf-cm, 18-26 in-lbf }.
