Turn Signal Lamp: Service and Repair

SIDE TURN SIGNAL LAMP









Removal and Installation

1. Remove the headlamp assembly. See Service and Repair.

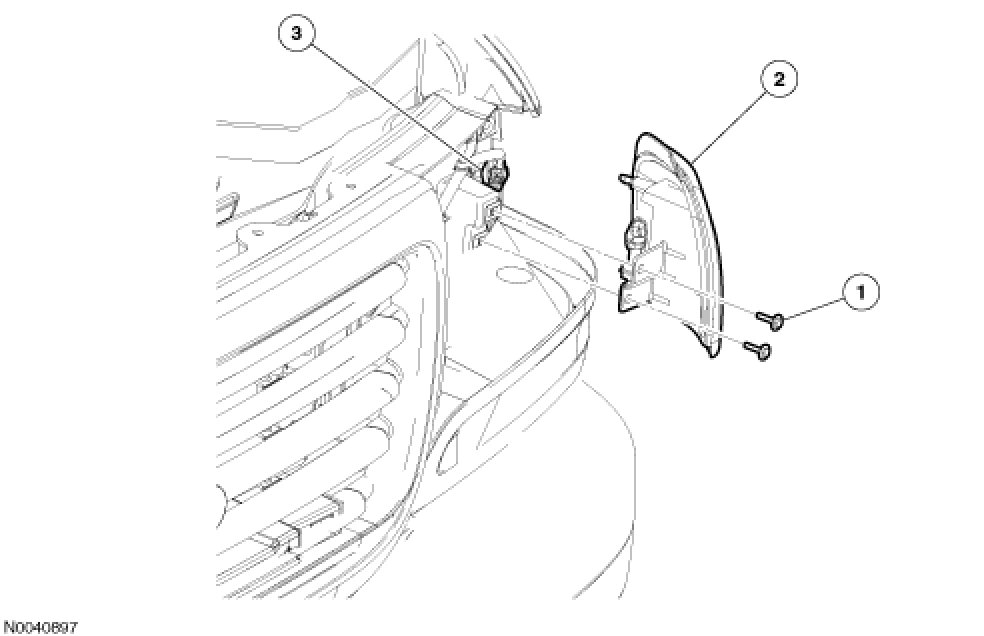

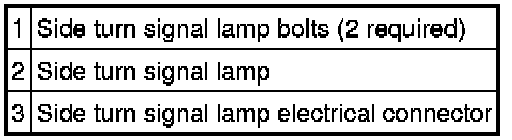

2. Remove the 2 bolts and the side turn signal lamp.

- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
