Accelerator Pedal: Service and Repair

-
ACCELERATOR PEDAL REMOVAL / INSTALLATION - 2.3L

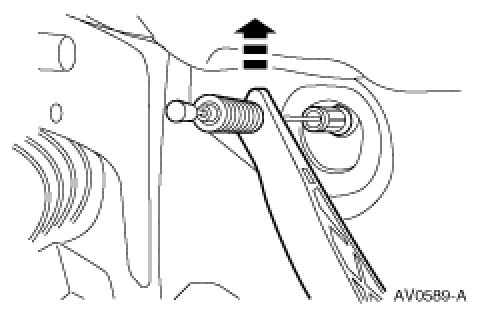

1. Disconnect the accelerator cable from the accelerator pedal and shaft.






1. Remove the bolt and remove the accelerator pedal and shaft.

2. To install, reverse the removal procedure.
