Alternator Pulley / Clutch: Service and Repair

GENERATOR PULLEY REMOVAL / INSTALLATION

1. Remove the generator. See - Service and Repair, or - Service and Repair

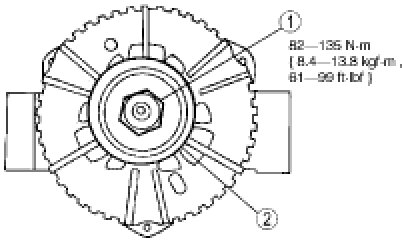

2. Remove the nut (1) and generator pulley (2).

3. To install, reverse the removal procedure.
