Shift Cable: Service and Repair

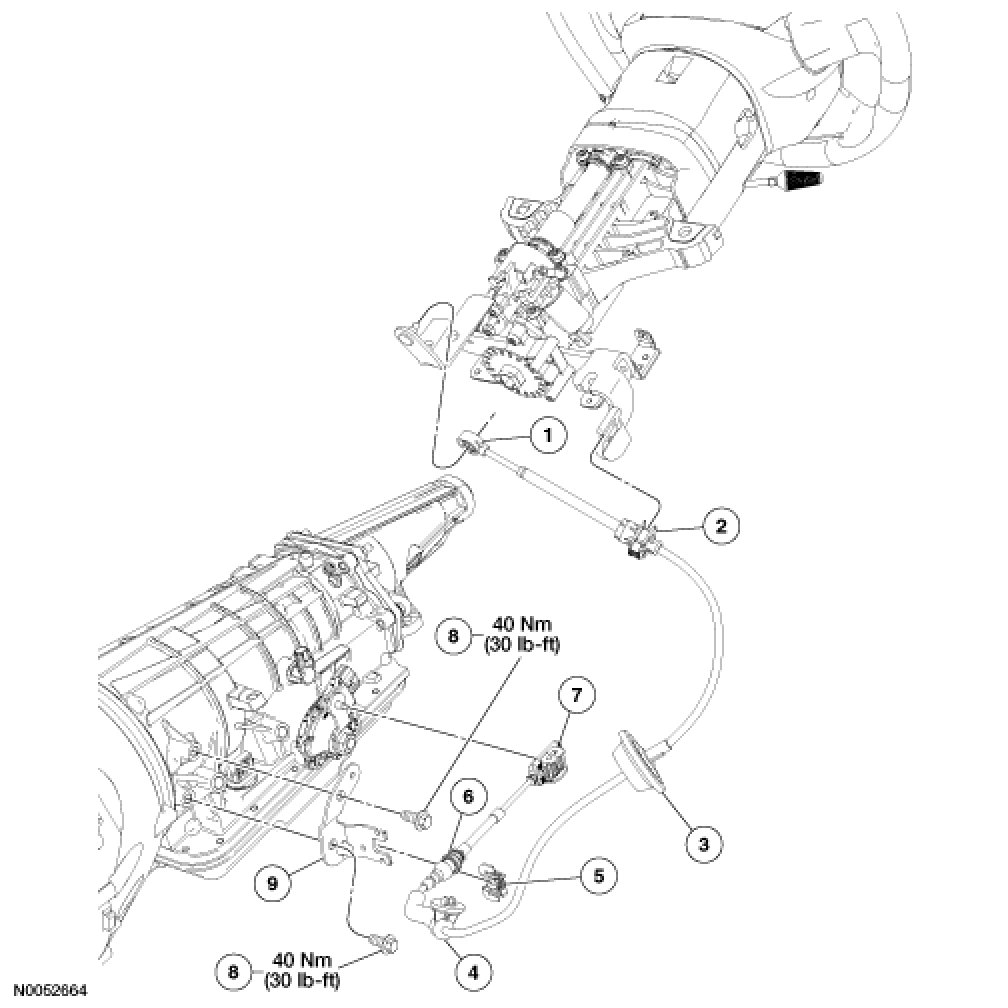

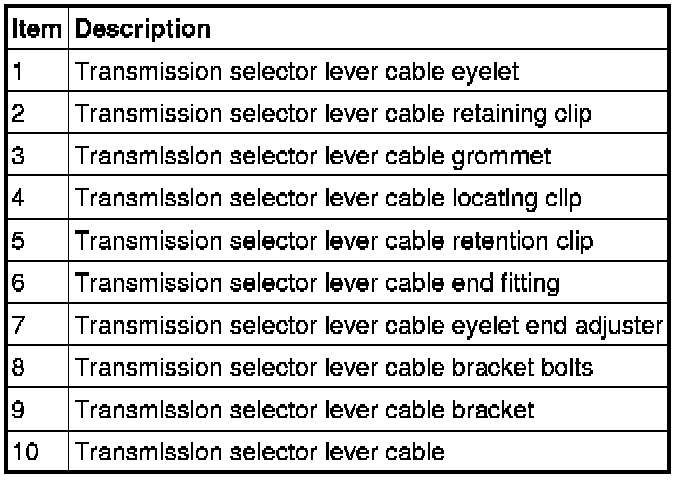

SHIFT CABLE AND BRACKET REMOVAL / INSTALLATION

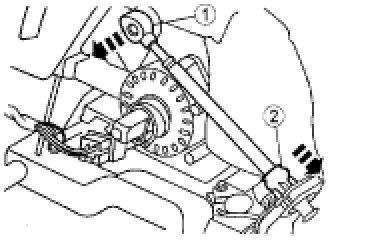

Disconnect the transmission selector lever cable from the steering column.
a. Disconnect the selector lever cable from the transmission column shift selector tube.

b. Disconnect the selector lever cable from the steering column bracket.

2. Push the rubber grommet and selector lever cable through the bulkhead.

3. With the vehicle in NEUTRAL, position it on a hoist. See Lifting.

4. Disconnect the selector lever cable from the locking clip.

5.

Remove the transmission selector lever cable from the manual lever.

6.

Remove the selector lever clip and remove the cable from the bracket.

7.

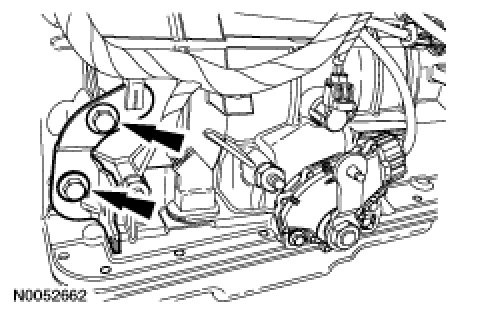

Remove the transmission selector lever cable bracket from the automatic transmission.

8.

To install, reverse the removal procedure.Tightening torque40 Nm {4.1 kgf-m, 30 ft-lbf}

- Move manual lever into overdrive (O/D) range.
- Adjust the transmission shift cable. See Adjustments.
