No.2 No Power On The Entire Audio System [Entire Audio System]




NO.2 NO POWER ON THE ENTIRE AUDIO SYSTEM [ENTIRE AUDIO SYSTEM]

Troubleshooting Hints:





Diagnostic procedure

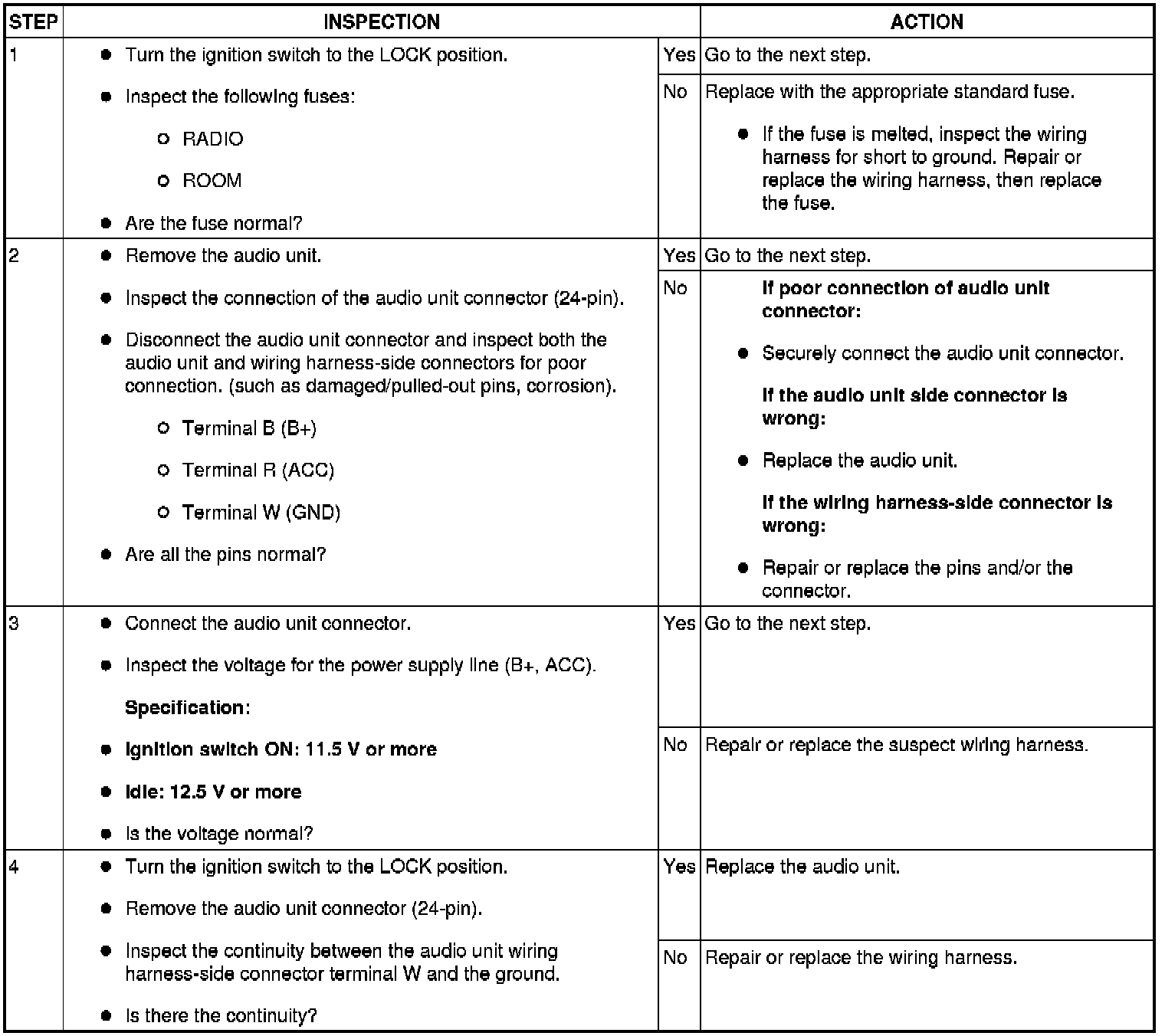

Step 1-Step 4:
