Cellular Phone: Service and Repair

HANDS-FREE TELEPHONE (HF/TEL) UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate (RH) Front Scuff Plate Removal/Installation

b. Front side trim (RH) Front Side Trim Removal/Installation

c. Glove compartment Service and Repair

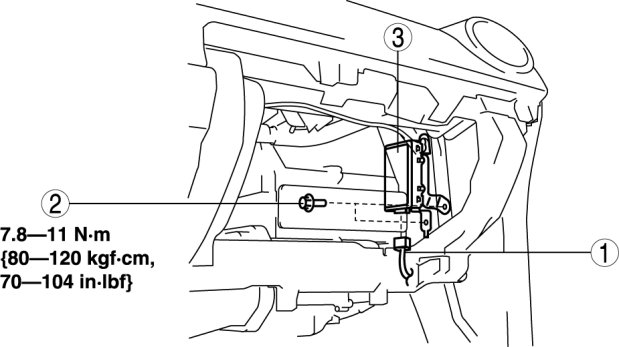

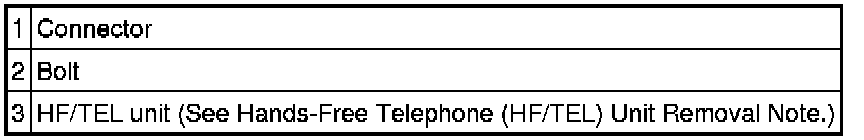

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

Hands-Free Telephone (HF/TEL) Unit Removal Note

1. Detach clip A using a flathead screwdriver
