Sirius Satellite Radio Antenna Inspection

SIRIUS SATELLITE RADIO ANTENNA INSPECTION

1. Disconnect the negative battery cable.

2. Partially peel back the seaming welt.

3. Remove the following parts:
a. Trunk box

b. Seat side box Seat Side Box Removal/Installation

c. Trunk end trim Trunk End Trim Removal/Installation

d. Third-row seat Third-Row Seat Removal/Installation

e. Third-row seat belt lower anchor installation bolt Third-Row Seat Belt Removal/Installation

f. Trunk side trim (See )

g. Roof side trim Roof Side Trim Removal/Installation

h. Second-row seat belt upper anchor installation bolt Second-Row Seat Belt Removal/Installation

i. C-pillar trim C-Pillar Trim Removal/Installation

j. Third-row seat belt upper anchor installation bolt Third-Row Seat Belt Removal/Installation

k. D-pillar trim D-Pillar Trim Removal/Installation

l. Assist handle Service and Repair

m. RES unit cover (Vehicles with RES) RES Unit Removal/Installation

n. SIRIUS satellite radio antenna Sirius Satellite Radio Antenna Removal/Installation

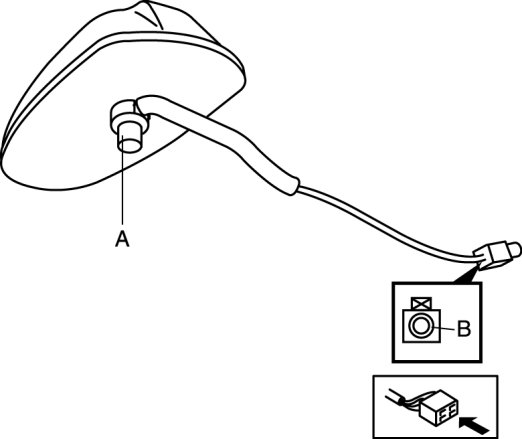

4. Inspect for continuity between the SIRIUS satellite radio antenna terminals.

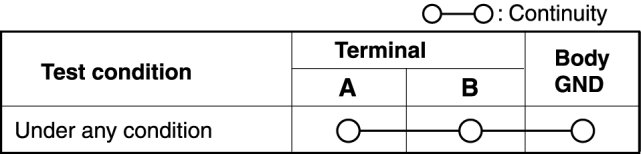

- If not as indicated in the table, replace the SIRIUS satellite radio antenna.
