No.4 BSM Indicator Light Illuminates While Not Under Light-Illumination Conditions




NO.4 BSM INDICATOR LIGHT ILLUMINATES WHILE NOT UNDER LIGHT-ILLUMINATION CONDITIONS [BLIND SPOT MONITORING (BSM)]

Description/Possible Cause:





Diagnostic Procedure

Step 1-Step 4:

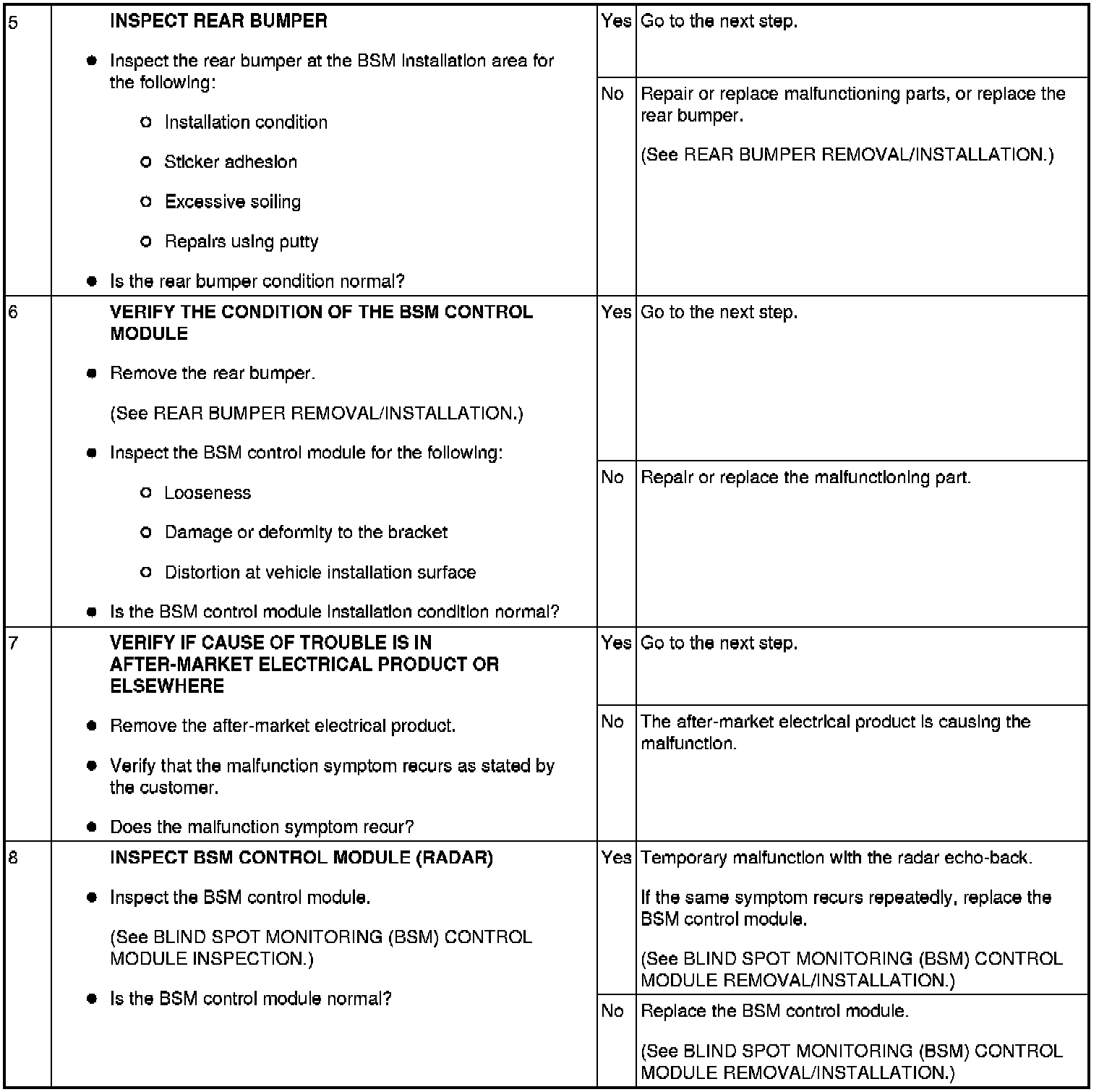

Step 5-Step 8:
