Front ABS Wheel-Speed Sensor Removal/Installation




FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

1. When removing the right front ABS wheel-speed sensor, perform the following procedure.
a. Remove the coolant reserve tank installation bolts and move the coolant reserve tank. Service and Repair

b. Remove the power steering reserve tank installation bolt and nut, and move the power steering reserve tank. Removal and Replacement

2. When removing the left front ABS wheel-speed sensor, perform the following procedure:
a. Remove the air cleaner case. Service and Repair

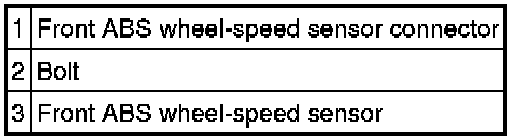

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
