Rear ABS Wheel-Speed Sensor Removal/Installation




REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [AWD]

1. Remove the trunk box.

2. Remove the seat side box. Seat Side Box Removal/Installation

3. Remove the third-row seat. Third-Row Seat Removal/Installation

4. Remove the rear scuff plate inner. Rear Scuff Plate Removal/Installation

5. Remove the third-row seat belt lower anchor installation bolt. Third-Row Seat Belt Removal/Installation

6. Remove the trunk side trim.

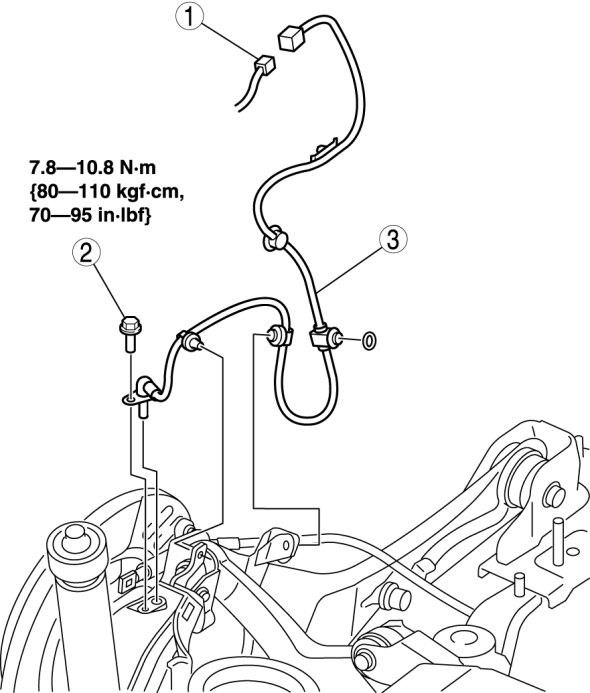

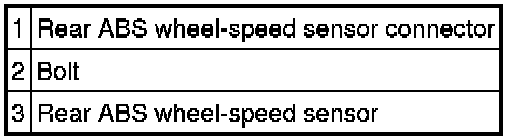

7. Remove in the order indicated in the table.










8. Install in the reverse order of removal.
