Front Brake (Disc) Removal/Installation

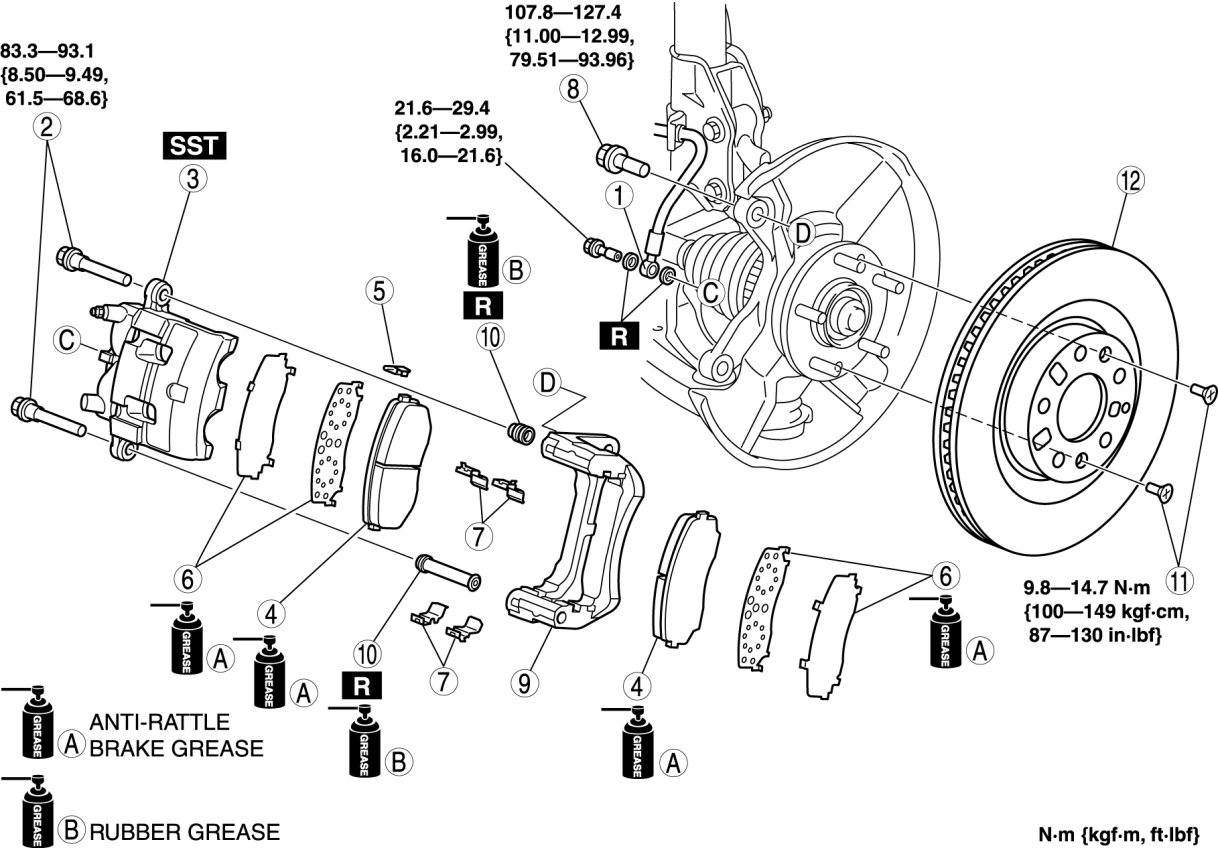

FRONT BRAKE (DISC) REMOVAL/INSTALLATION

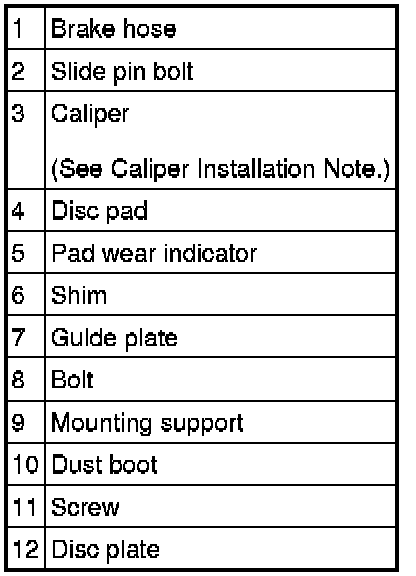

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. After installation, add brake fluid, bleed the air, and inspect for fluid leakage. Air Bleeding

4. After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.










Caliper Installation Note

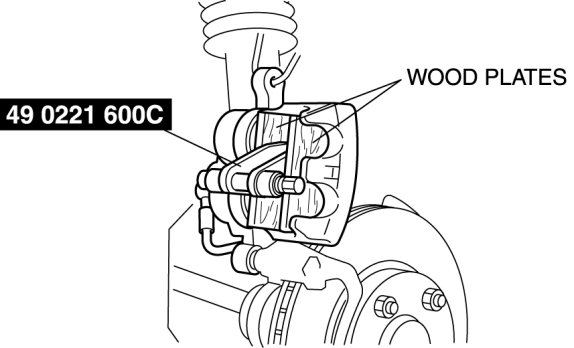

1. Push the piston fully inward using the SST.






2. Install the caliper.
