Home >> Mazda >> 2009 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Components >> Passenger-Side Front Air Mix Actuator

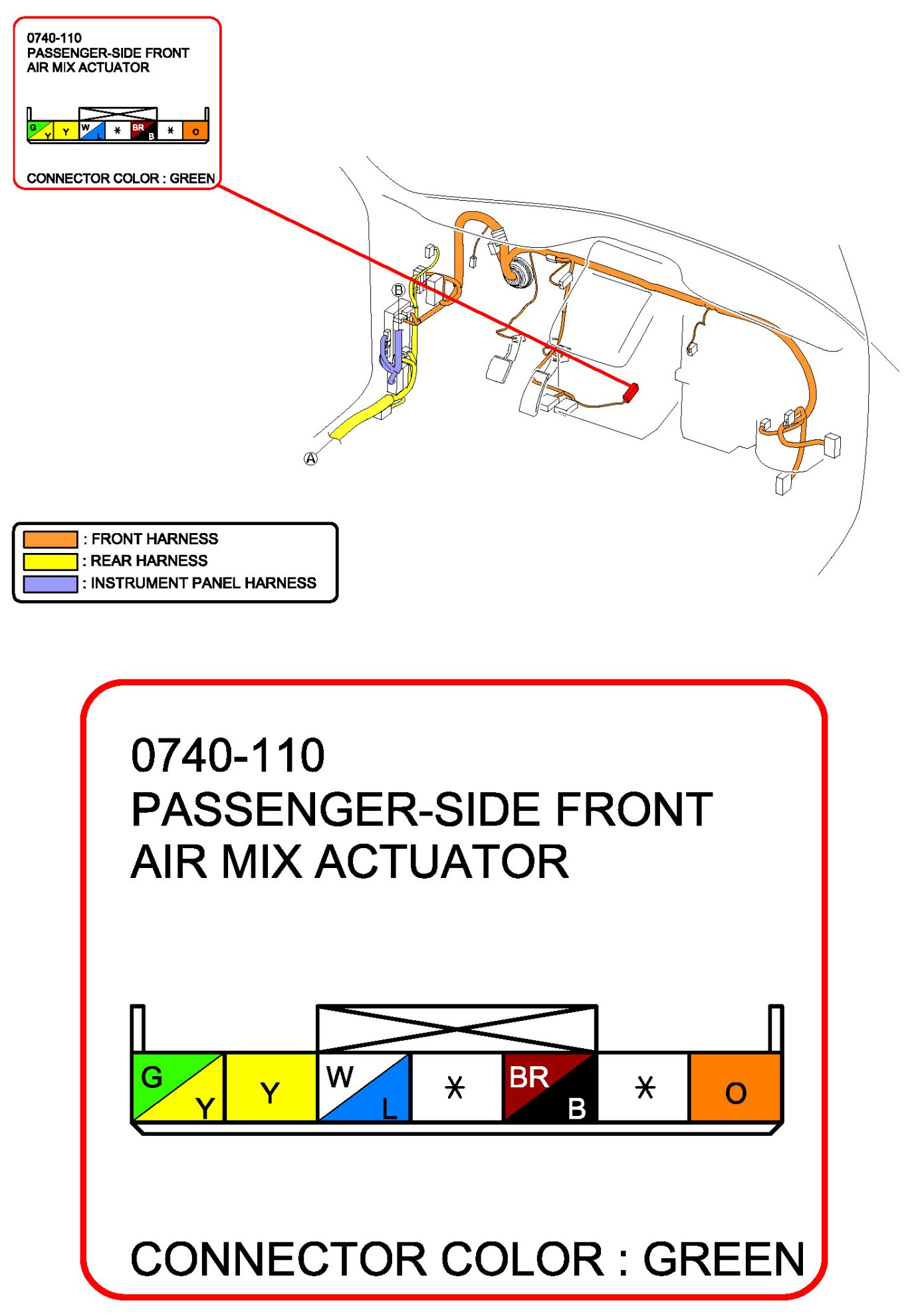

Passenger-Side Front Air Mix Actuator

Passenger-Side Front Air Mix Actuator:
