Home >> Mazda >> 2009 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Components >> Rear Air Mix Actuator

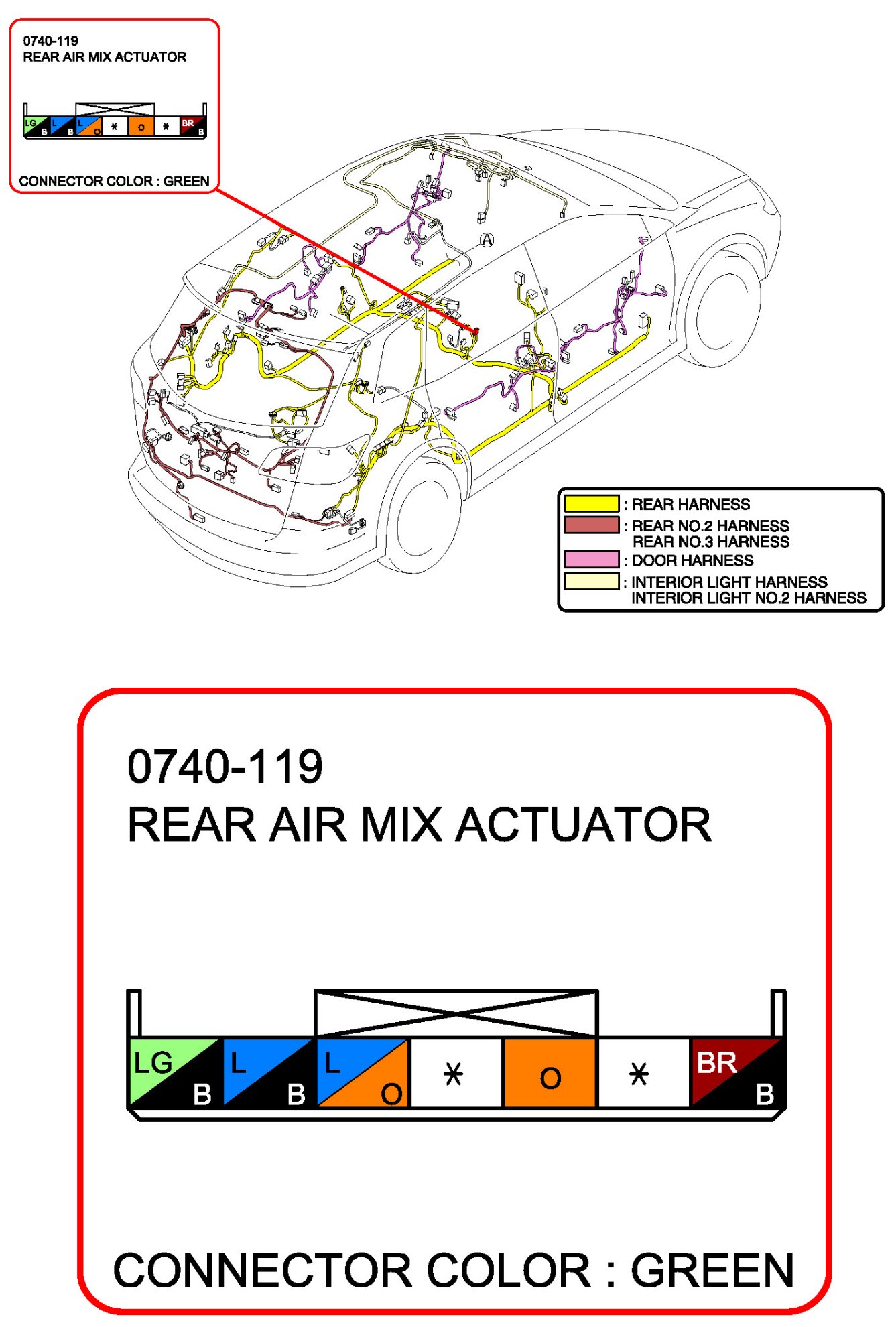

Rear Air Mix Actuator

Rear Air Mix Actuator:
