Antilock Brakes / Traction Control Systems

Diagram 0418-a:

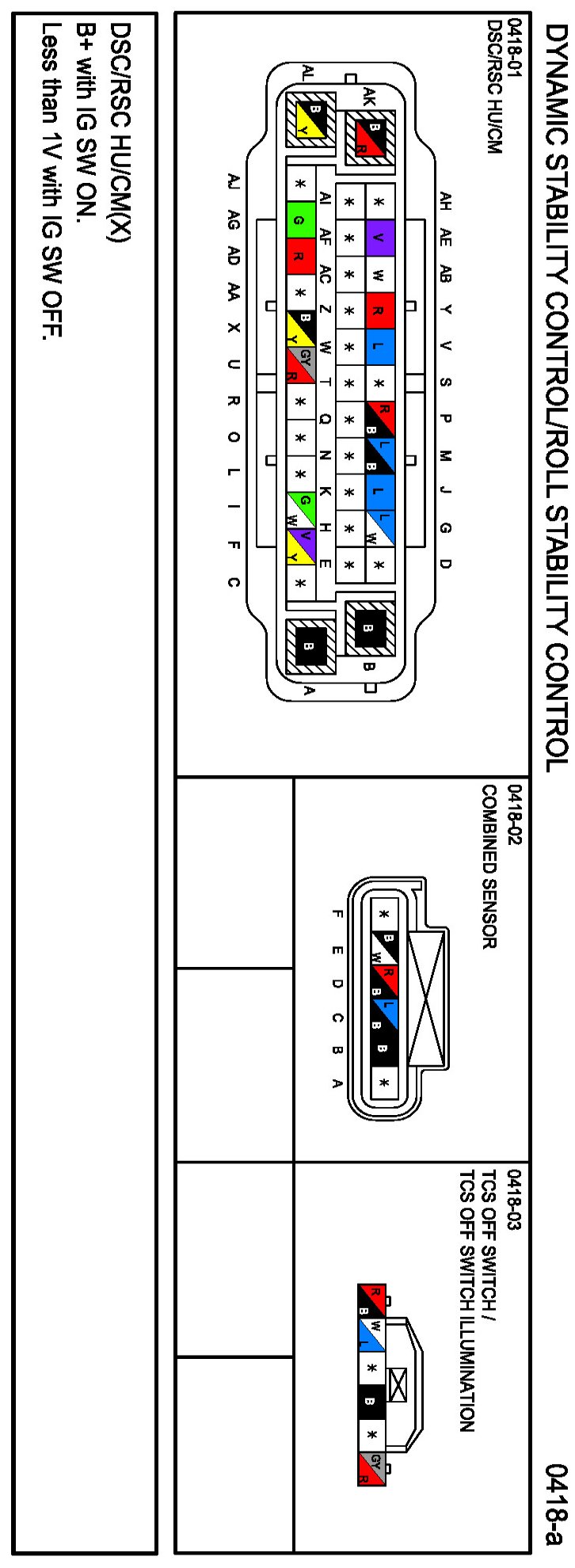

Connectors 0418-a:

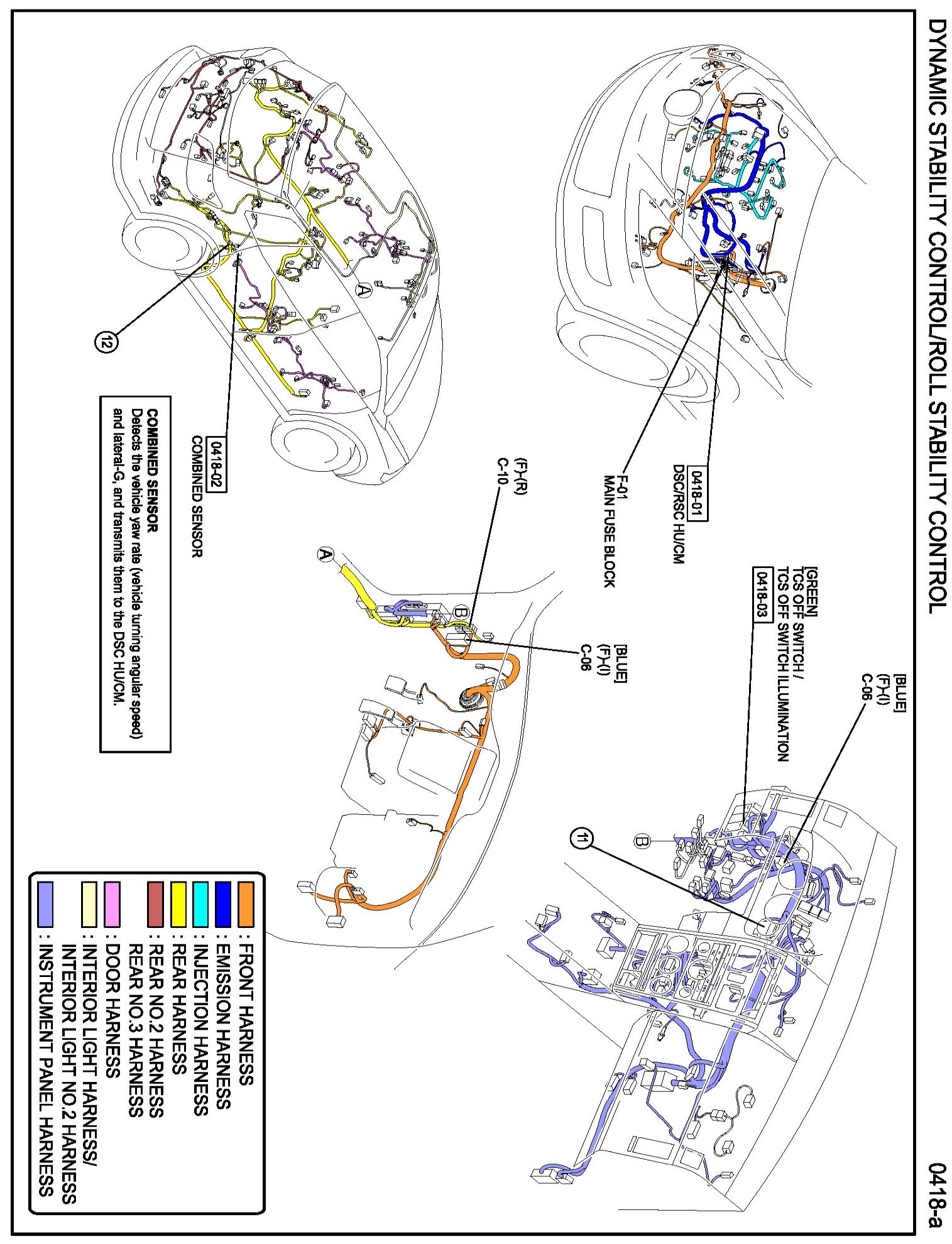

Routing View 0418-a:

Diagram 0418-b:

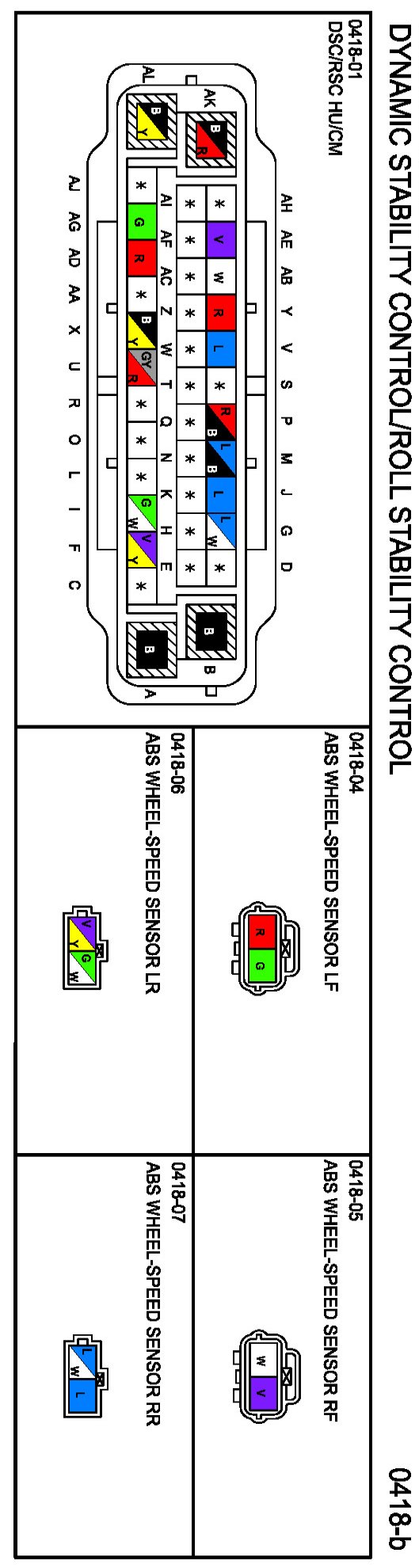

Connectors 0418-b:

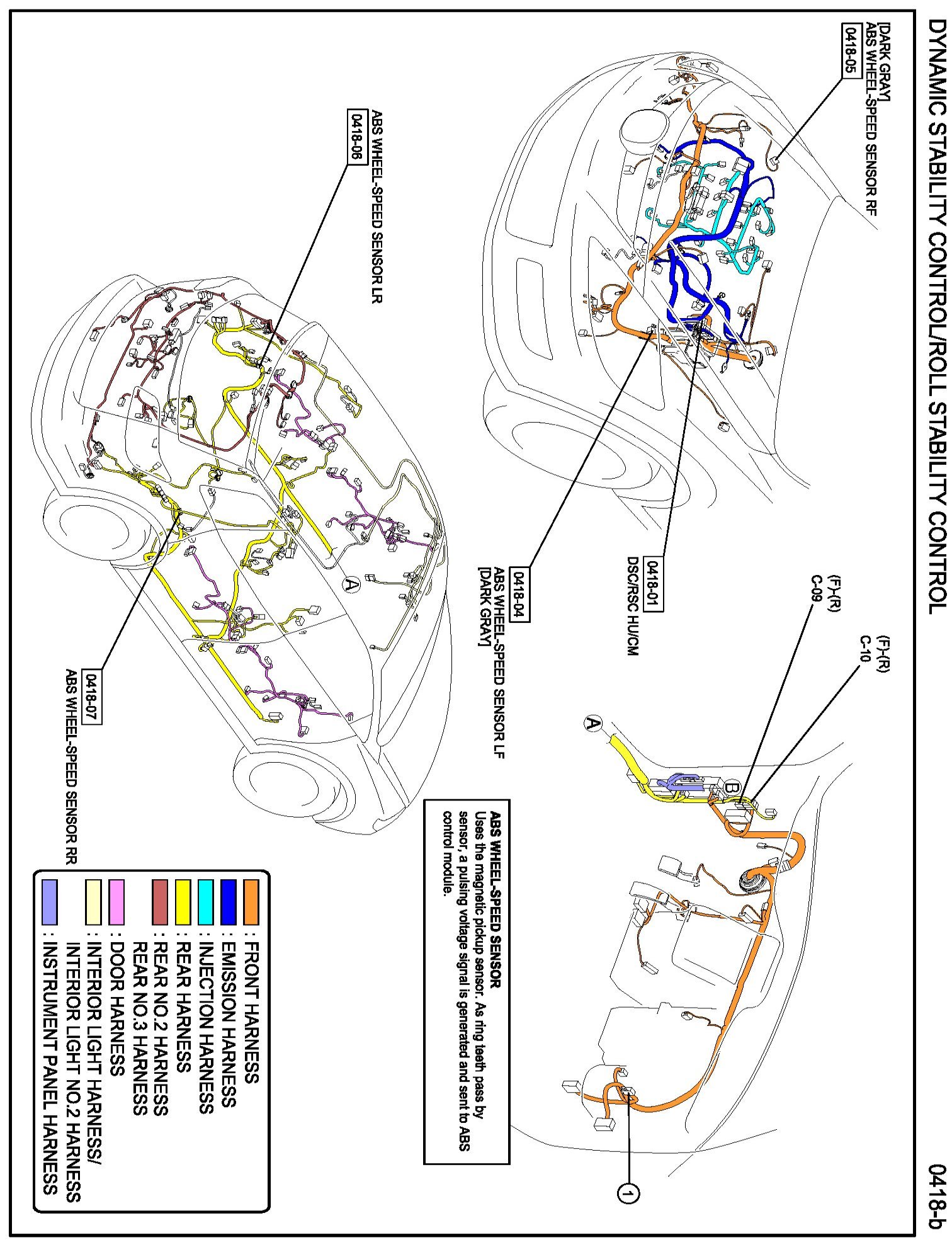

Routing View 0418-b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
