Intake Manifold

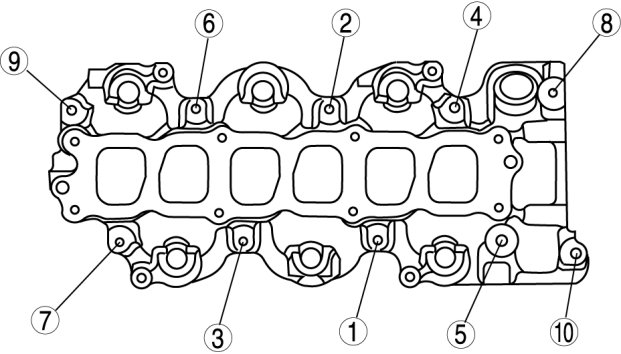

Intake ManifoldTighten the intake manifold installation bolts in the order shown.
Intake manifold installation bolt tightening torque
8.5-11.5 Nm {87-117 kgf-cm, 76-101 in-lbf}
Dynamic Chamber
Tighten the dynamic chamber installation bolts in the order shown.
Dynamic chamber installation bolt tightening torque
8.5-11.5 Nm {87-117 kgf-cm, 76-101 in-lbf}
