Air Register: Service and Repair
VENTILATOR GRILLE REMOVAL/INSTALLATION
Driver Side
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation
b. Front console box mat Front Console Box Mat Removal/Installation
c. Indicator panel Indicator Panel Removal/Installation
d. Front console box Front Console Box Removal/Installation
e. Center panel Center Panel Removal/Installation
f. Upper column cover Service and Repair
3. Remove the screws.
4. Remove the hook.
5. Remove the ventilator grille in the direction of the arrow.
6. Install in the reverse order of removal.

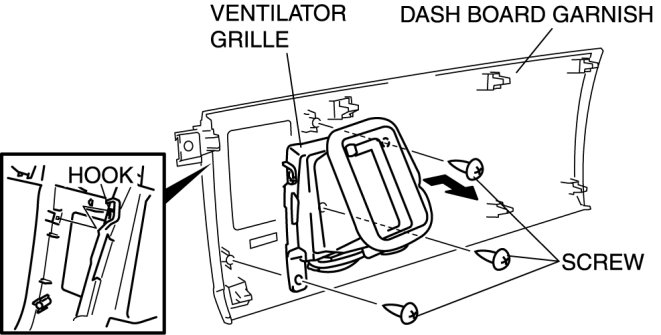

Passenger Side
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation
b. Front console box mat Front Console Box Mat Removal/Installation
c. Indicator panel Indicator Panel Removal/Installation
d. Front console box Front Console Box Removal/Installation
e. Center panel Center Panel Removal/Installation
f. Side panel Side Panel Removal/Installation
g. Dashboard garnish Dashboard Garnish Removal/Installation
3. Remove the screws.
4. Remove the hook.
5. Remove the ventilator grille in the direction of the arrow.
6. Install in the reverse order of removal.

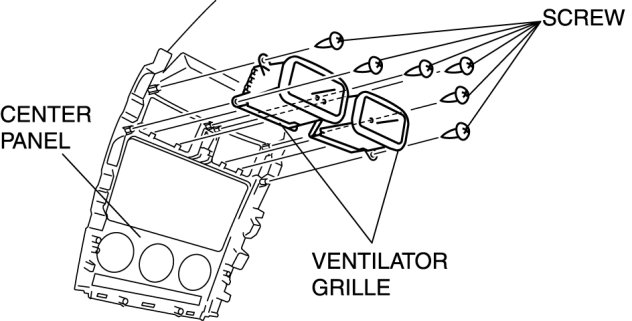

Center
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation
b. Front console box mat Front Console Box Mat Removal/Installation
c. Indicator panel Indicator Panel Removal/Installation
d. Front console box Front Console Box Removal/Installation
e. Center panel Center Panel Removal/Installation
3. Remove the screws
4. Remove the ventilator grille.
5. Install in the reverse order of removal.

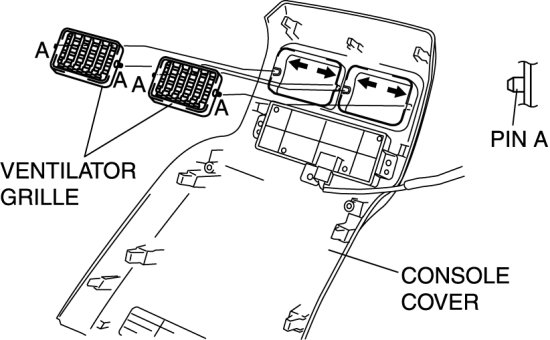

Rear
1. Disconnect the negative battery cable.
2. Remove the console cover. Console Cover Removal/Installation
3. Remove the rear cooler duct. Rear Cooler Duct Removal/Installation
4. Detach the pins A while holding the console cover.
5. Remove the ventilator grille in the direction of the arrow.
6. Install in the reverse order of removal.
