Compressor Clutch: Testing and Inspection

MAGNETIC CLUTCH INSPECTION

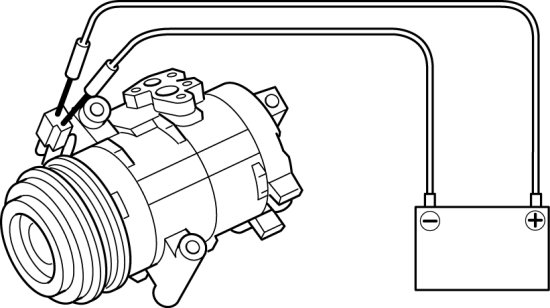

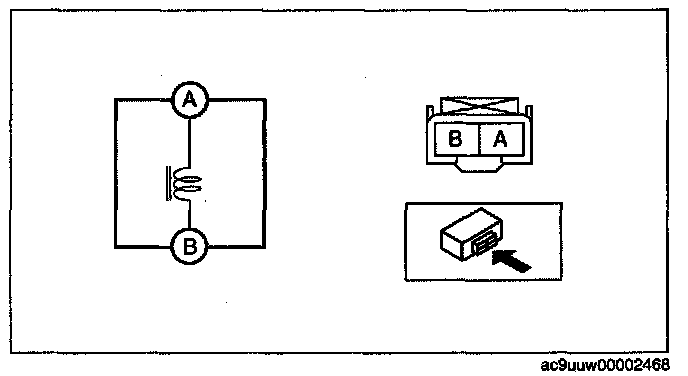

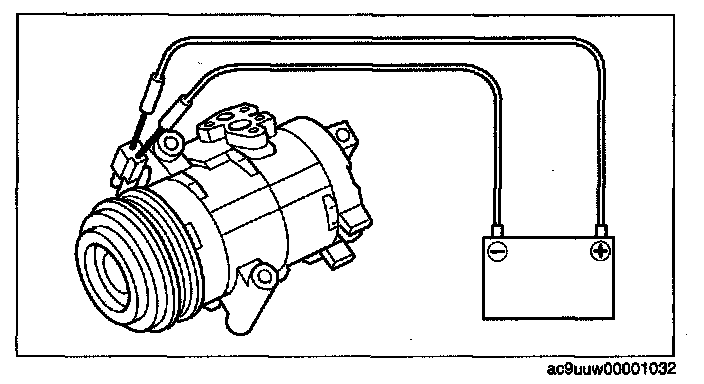

1. Connect battery positive voltage to magnetic clutch terminal A, connect terminal B to ground.











2. Verify that the magnetic clutch operates.

- If there is any malfunction, replace the magnetic clutch.
