Auto Light/Wiper Control Module Inspection

AUTO LIGHT/WIPER CONTROL MODULE INSPECTION

1. Measure the voltage at the auto light/wiper control module terminals as indicated below.

2. Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.

- If the voltage is not as specified in the Terminal Voltage Table, inspect the parts under "Inspection item (s)".

- If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the auto light/wiper control module.

Terminal Voltage List (Reference)

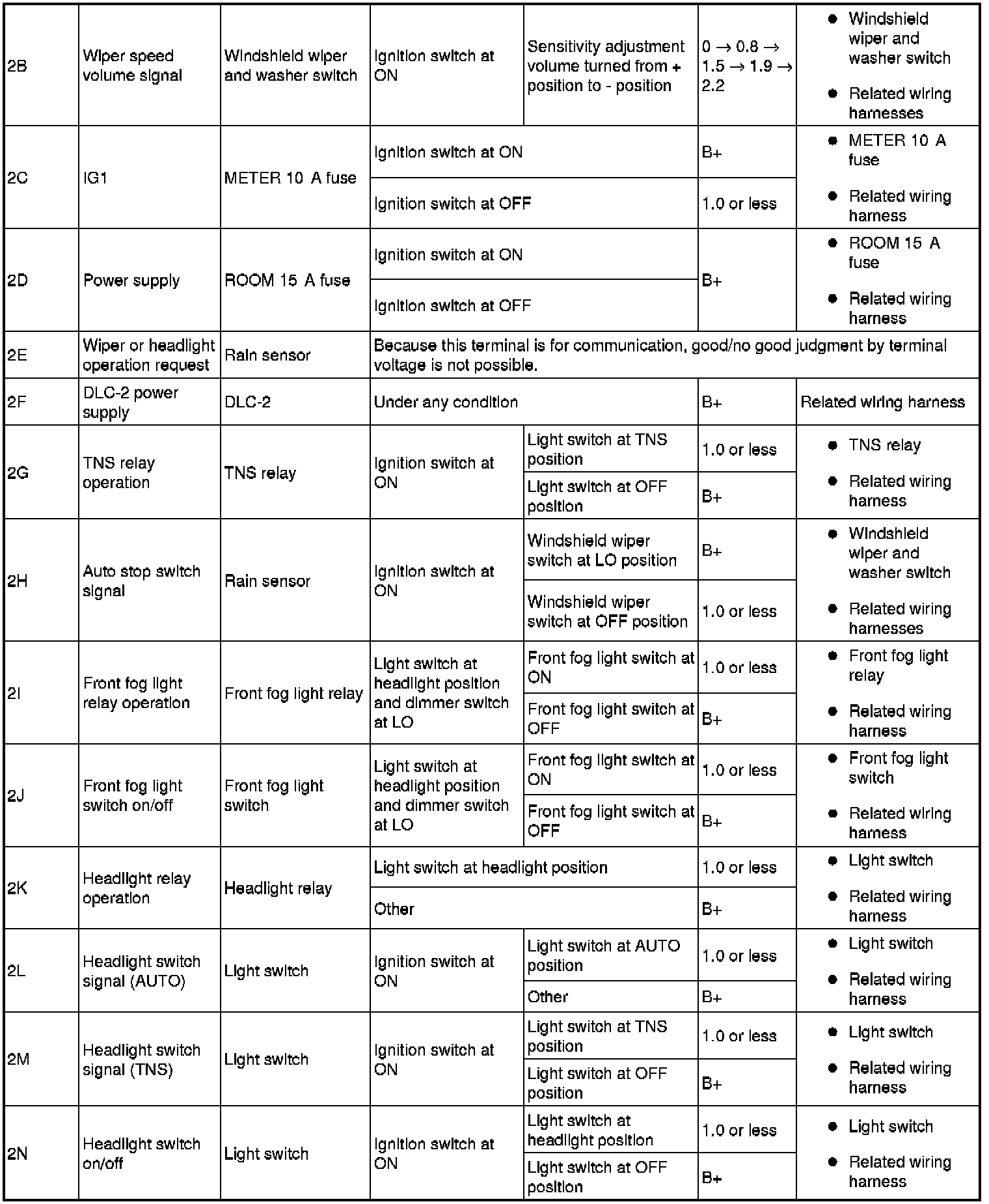

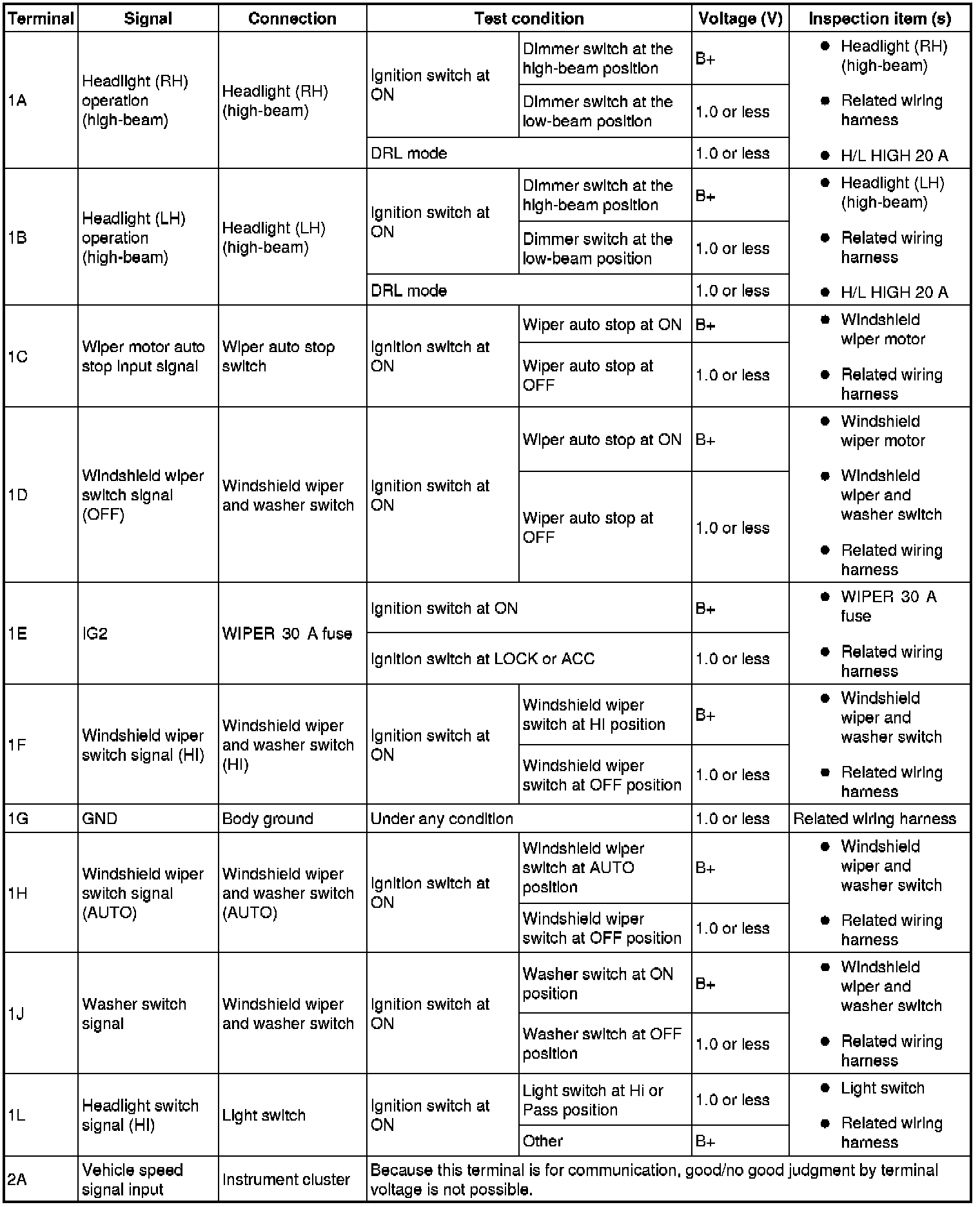

Terminal Voltage List (Reference) (Part 1):

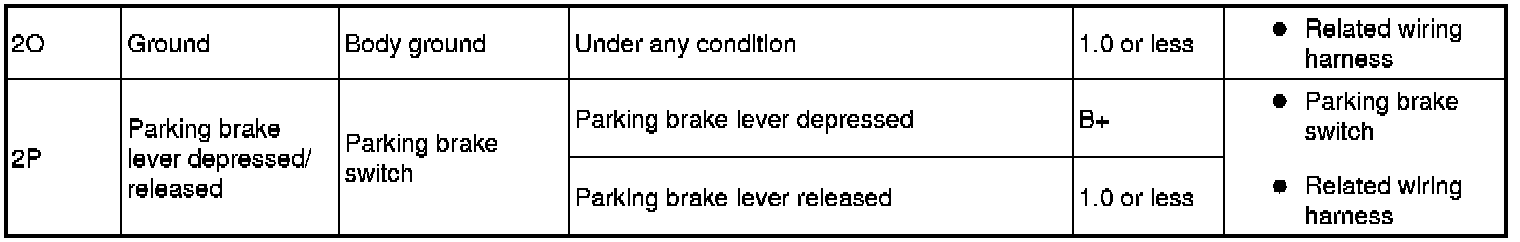

Terminal Voltage List (Reference) (Part 2):

Terminal Voltage List (Reference) (Part 3):
