Home >> Mazda >> 2009 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Locations >> Component Locations >> A - Z Component List >> Driver-Side Front Air Mix Actuator

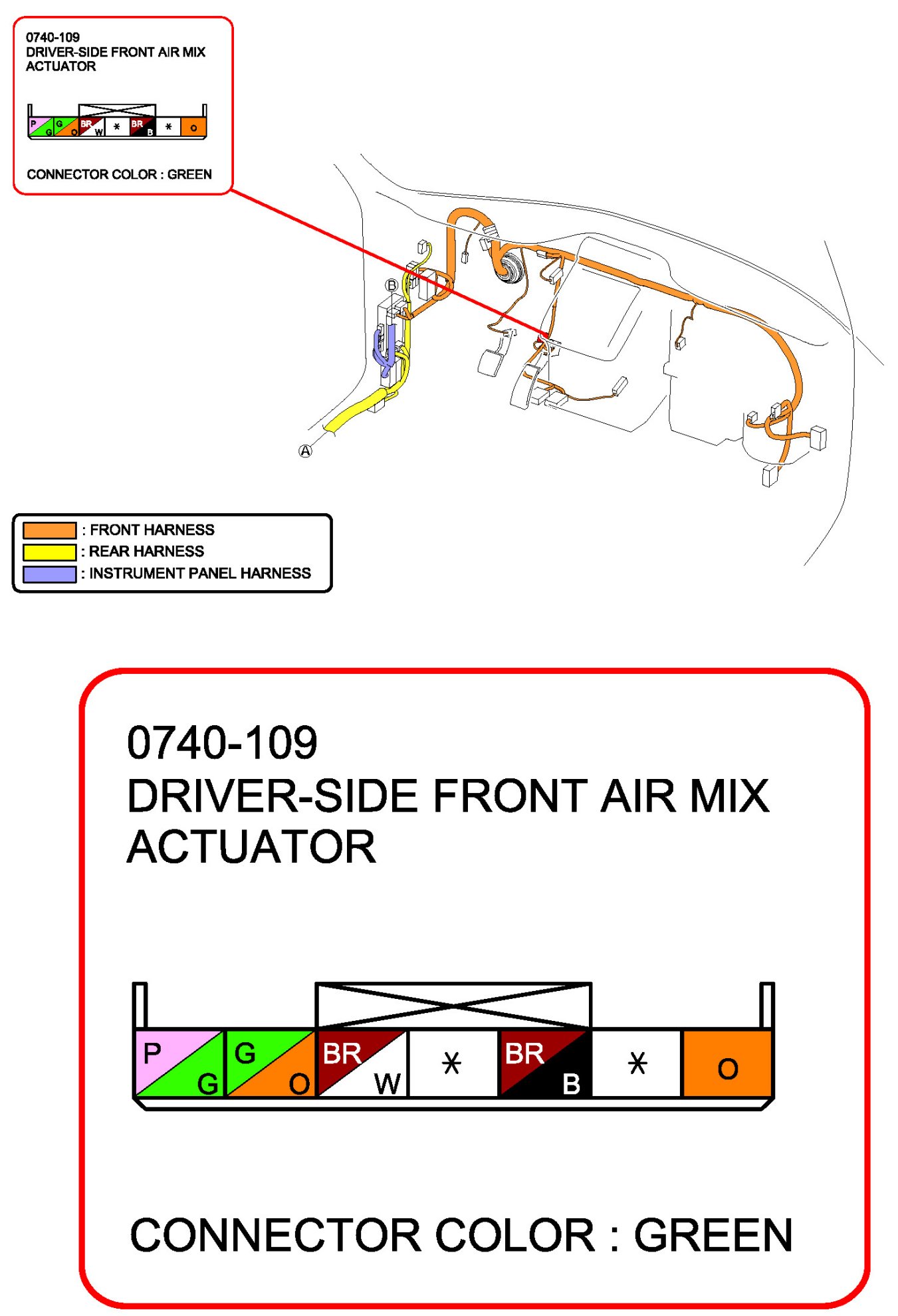

Driver-Side Front Air Mix Actuator

Driver-Side Front Air Mix Actuator:
