Axle Shaft Assembly




DRIVELINE/AXLE TECHNICAL DATA

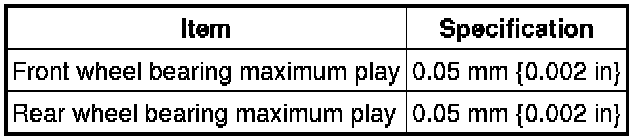

Front and Rear Axle

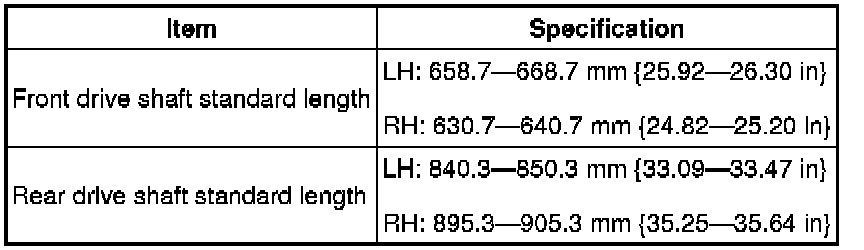

Drive Shaft

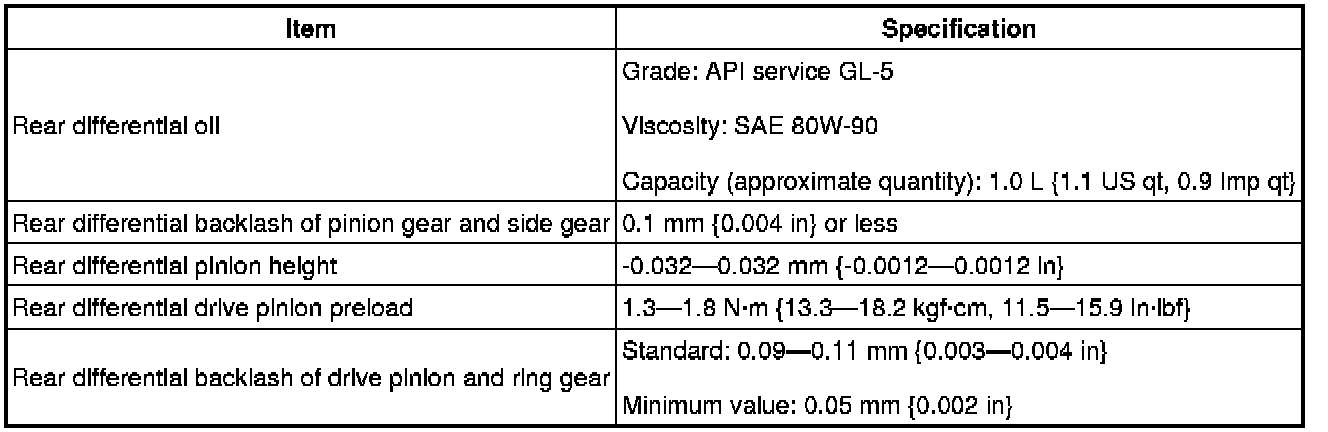

Differential

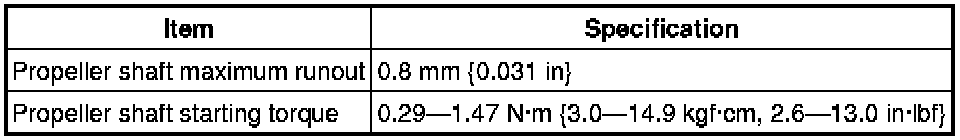

Propeller Shaft





Transfer
