Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2009
>>
CX-9 AWD V6-3.7L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Service and Repair
>>
Overhaul
>>
Transfer AW6AX-El Service
>>
Transfer Assembly
>>
Transfer Component Assembly
Transfer Component Assembly
Transfer Component Assembly

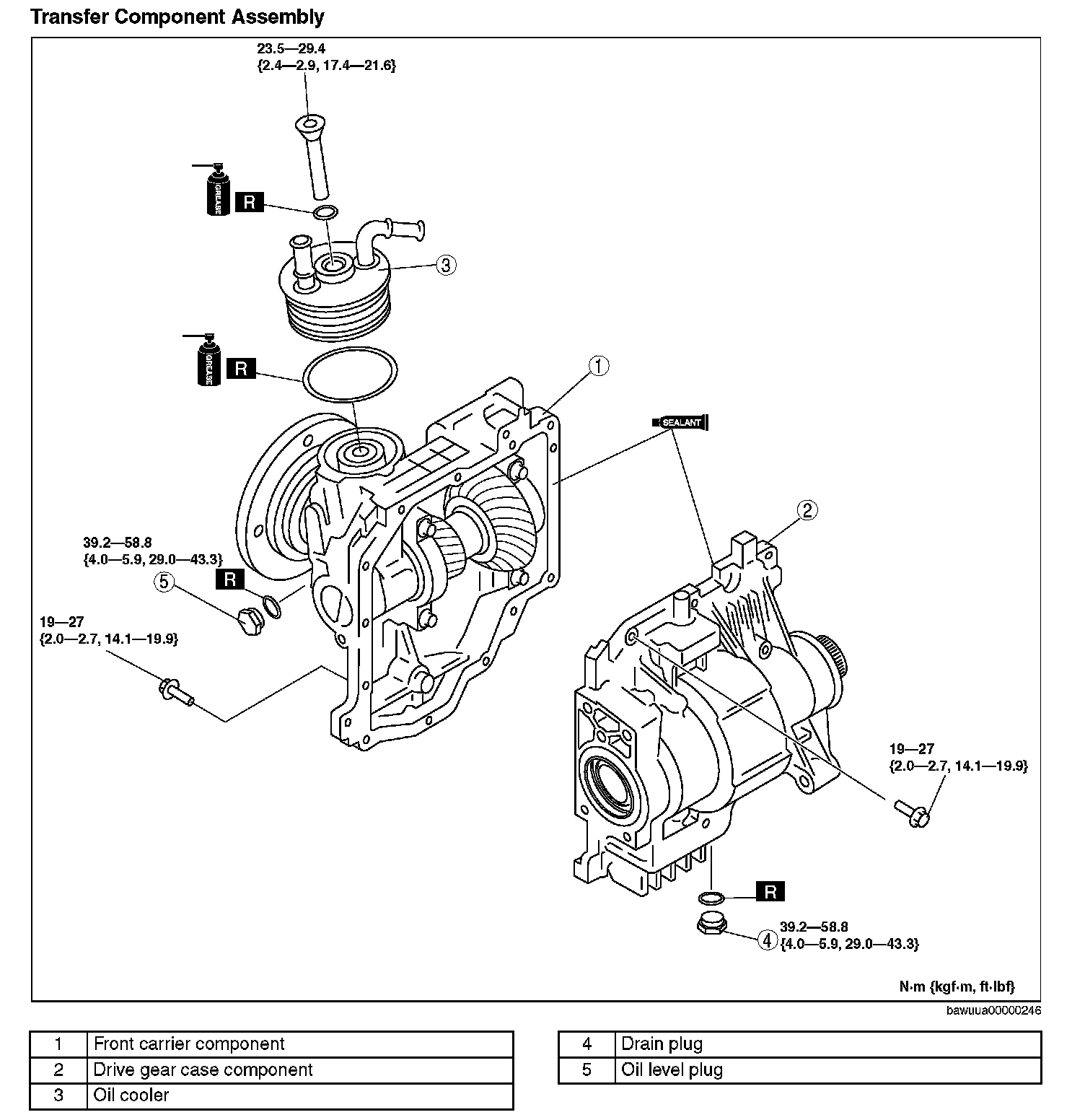

Transfer Component Assembly:
