Home >> Mazda >> 2009 >> Tribute 2WD L4-2.5L Hybrid >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P013E

P013E




HEATED OXYGEN SENSOR (HO2S) HEATER CIRCUIT





Detection Condition:





Possible Causes (Part 1):





Possible Causes (Part 2):

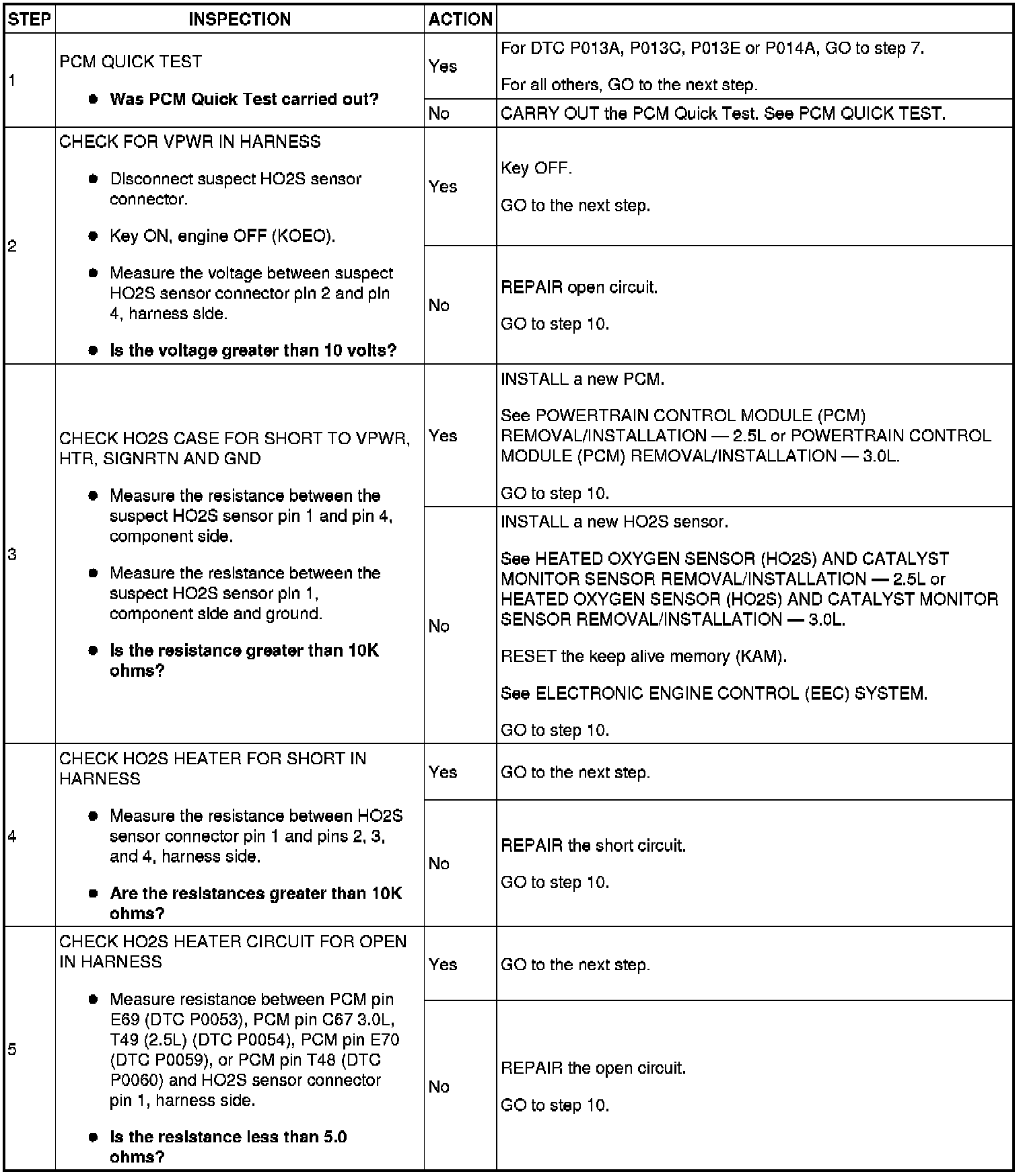

Step 1-Step 5:

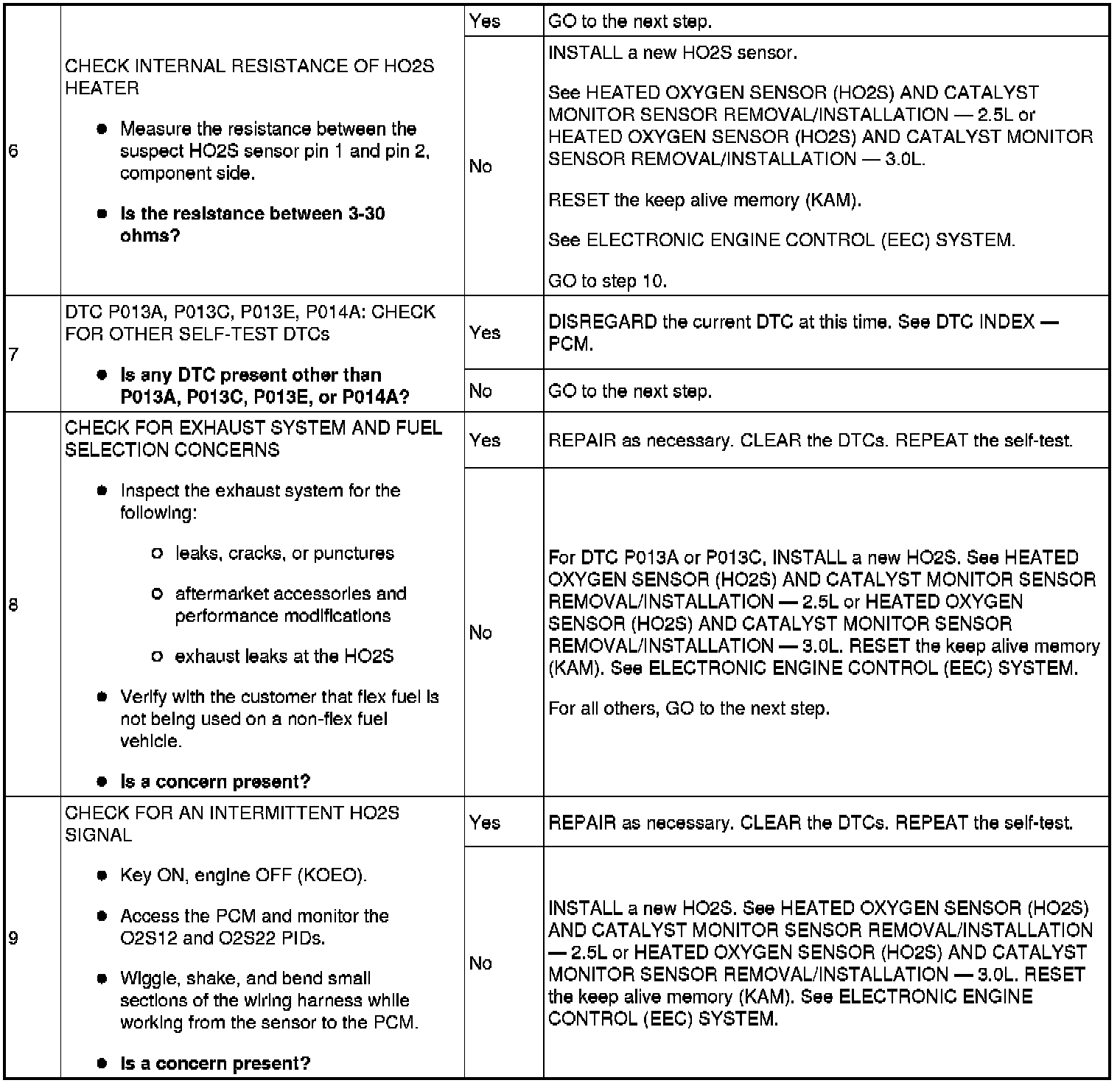

Step 6-Step 9:





Step 10:
