SYMPTOM TROUBLESHOOTING CHART - POWER DOOR LOCKS/KEYLESS ENTRY REMOTE TRANSMITTER

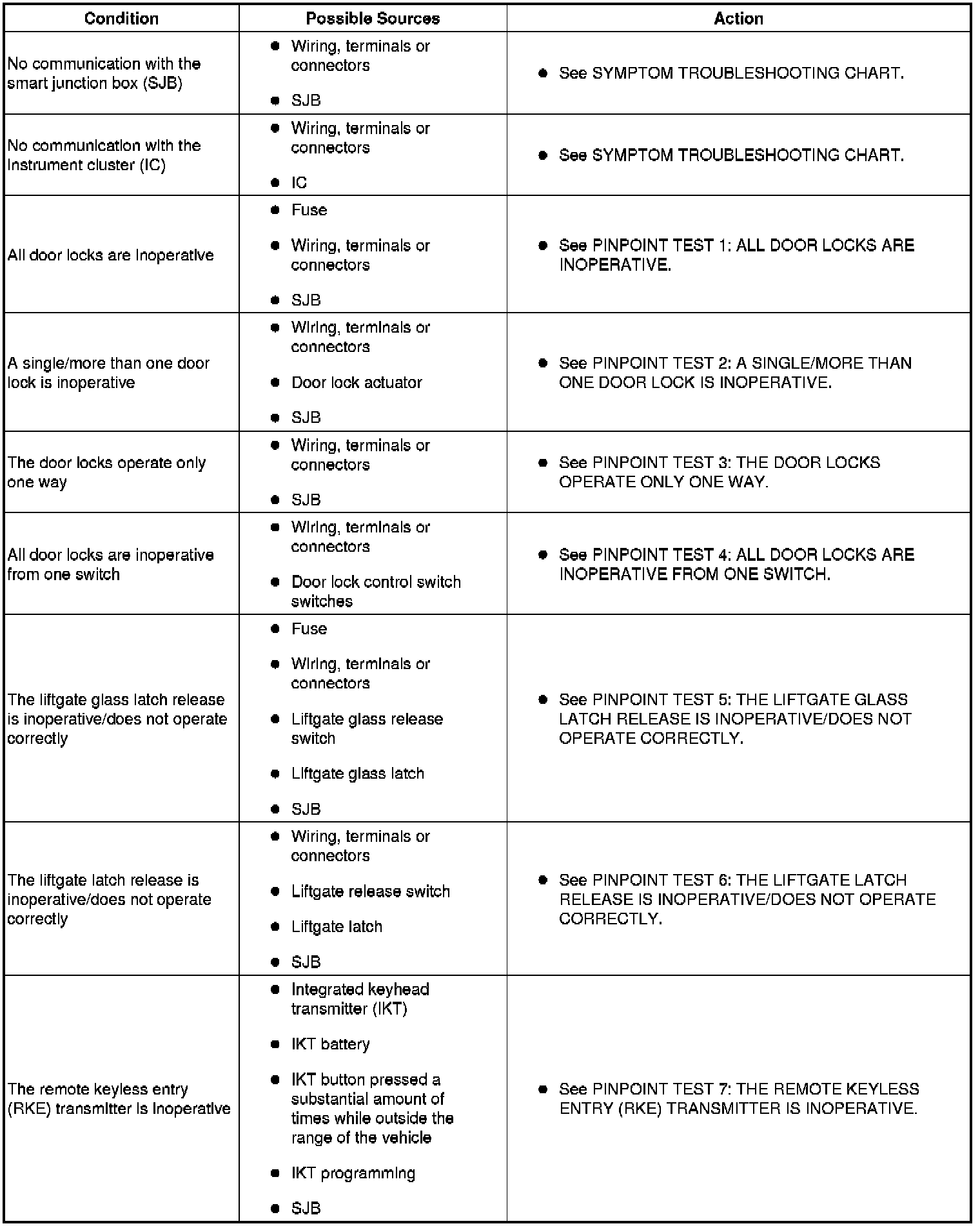

Symptom Troubleshooting Chart (Part 1):

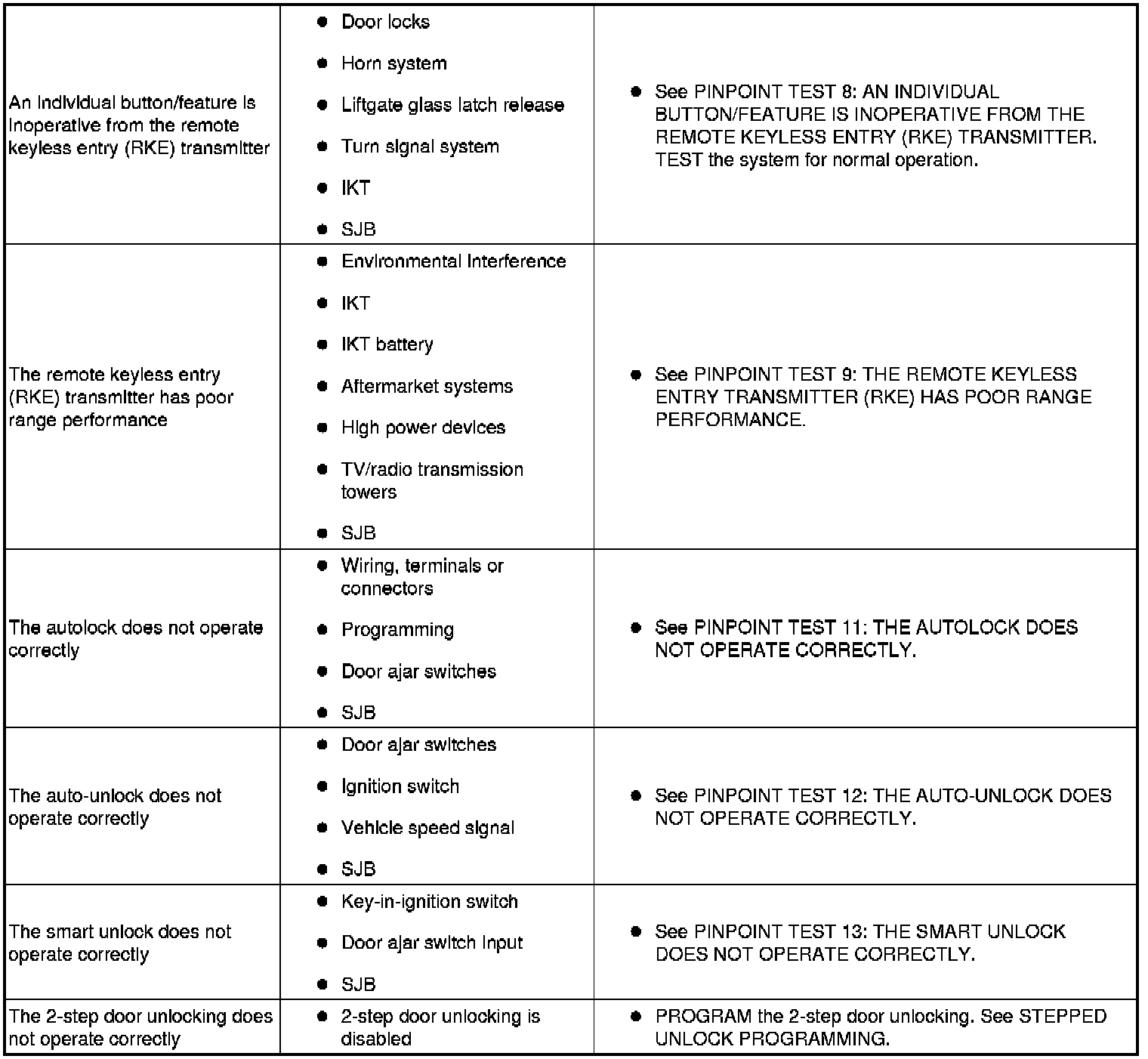

Symptom Troubleshooting Chart (Part 2):
