Disc Brake System: Locations
-

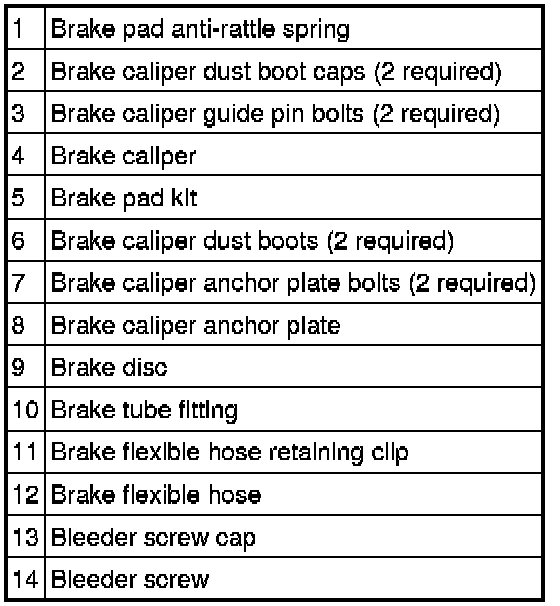

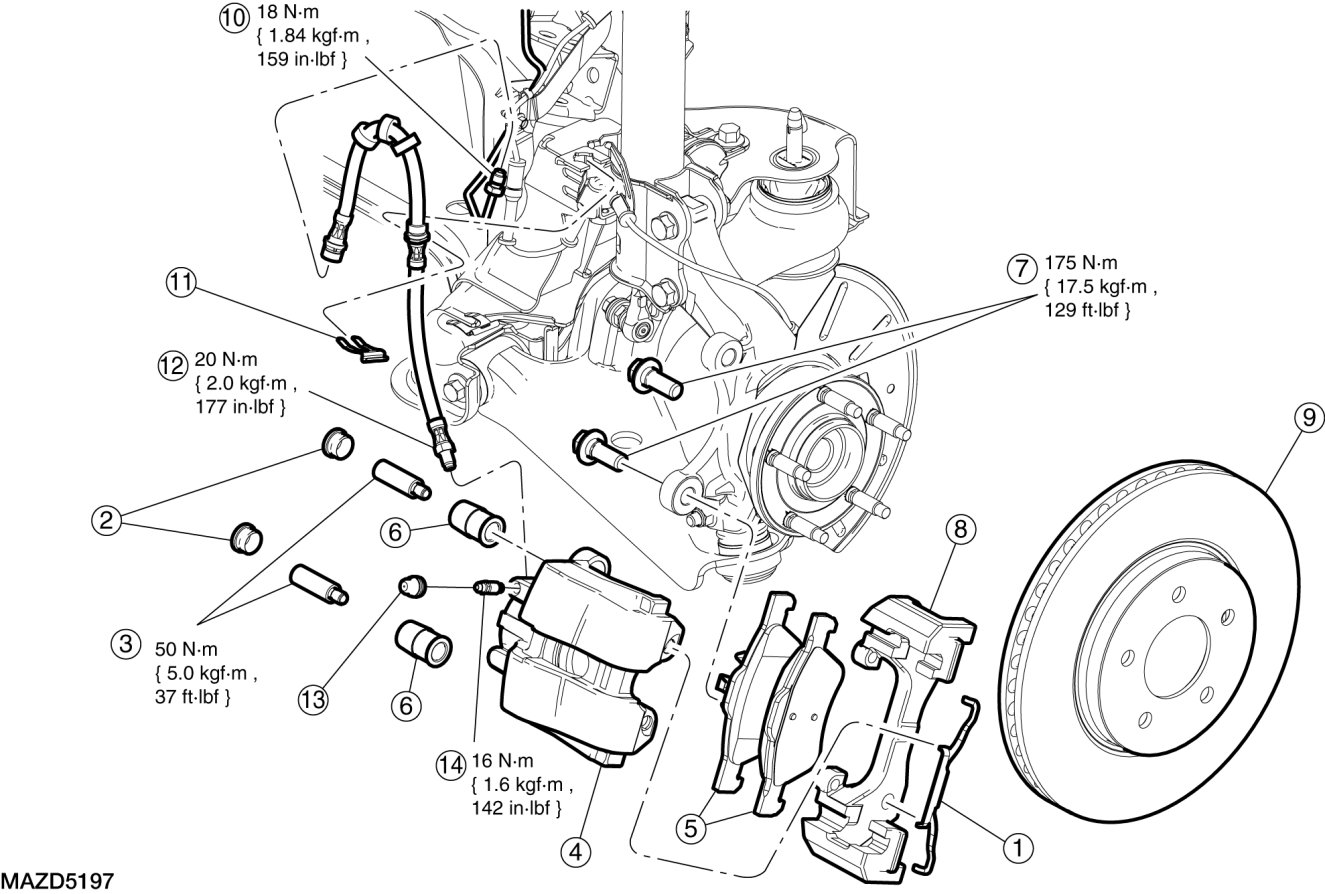

DISC BRAKE SYSTEM - EXPLODED VIEW
1.
For additional information, see the procedures.
